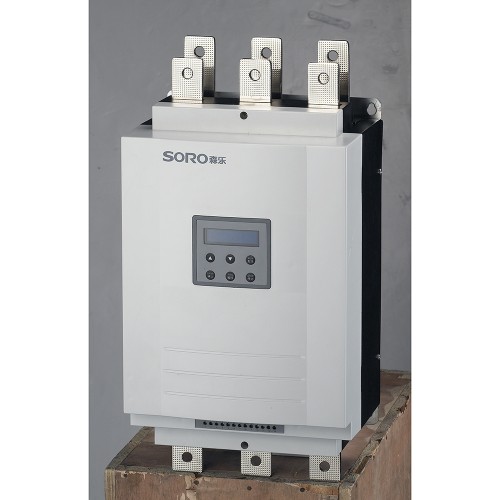

SR8-3200 200KW soft starter for three phase AC asynchronous motor squirrel cage motor
Product features
Mouse over to zoom in
SR8-3200 200KW soft starter for three phase AC asynchronous motor squirrel cage motor
Product description
▇ Model number and parameters
| Model number | Same model | Rated power | Rated current | Weight | Online store: |
| SR8-3011 | FKR1-3011 | 11kw | 23A | 4kg | US $154.3/ pieceOrder |
| SR8-3015 | FKR1-3015 | 15kw | 30A | 4kg | US $160.59/ pieceOrder |
| SR8-3018 | FKR1-3018 | 18kw | 37A | 4kg | US $165.06/ pieceOrder |
| SR8-3022 | FKR1-3022 | 22kw | 43A | 4kg | US $165.06/ pieceOrder |
| SR8-3030 | FKR1-3030 | 30kw | 60A | 4kg | US $183.05/ pieceOrder |
| SR8-3037 | FKR1-3037 | 37kw | 75A | 4kg | US $187.39/ pieceOrder |
| SR8-3045 | FKR1-3045 | 45kw | 90A | 4kg | US $260.53/ pieceOrder |
| SR8-3055 | FKR1-3055 | 55kw | 110A | 4kg | US $269.51/ pieceOrder |
| SR8-3075 | FKR1-3075 | 75kw | 150A | 19.5kg | US $471.64/ pieceOrder |
| SR8-3090 | FKR1-3090 | 90kw | 180A | 19.5kg | US $494.1/ pieceOrder |
| SR8-3115 | FKR1-3115 | 115kw | 230A | 19.5kg | US $505.33/ pieceOrder |
| SR8-3132 | FKR1-3132 | 132kw | 264A | 19.5kg | US $536.78/ pieceOrder |
| SR8-3160 | FKR1-3160 | 160kw | 320A | 19.5kg | US $606.4/ pieceOrder |
| SR8-3200 | FKR1-3200 | 200kw | 400A | 24kg | Visiting... |
| SR8-3220 | FKR1-3220 | 220kw | 24kg | US $797.3/ pieceOrder | |
| SR8-3250 | FKR1-3250 | 250kw | 500A | 24kg | US $808.53/ pieceOrder |
| SR8-3260 | FKR1-3260 | 260kw | 24kg | US $808.53/ pieceOrder | |
| SR8-3280 | FKR1-3280 | 280kw | 24kg | US $830.99/ pieceOrder | |
| SR8-3320 | FKR1-3320 | 320kw | 640A | 24kg | US $853.45/ pieceOrder |
▇ General
| Model number | SR8-3000 series |
| Rated input voltage | 380Vac±15% 50/60Hz |
| Control voltage | 220Vac±15% 50Hz |
| Applied motor | Three-phase squirrel cage asynchronous motor |
| Start frequency | Less than 12 times per hour |
| Cooling mode | Natural wind |
| Applied occasion | Good ventilation room, without corrosive gas or conductive dust |
| Standard | GB14048.6-1998 |
| Protection degree | IP20 |
| Resistance to vibration | Can withstand 0.5G min under 3000 m |
| Resistance to impact | 15kg 11ms |
| Operating temperature | -30 to 55 ℃ |
| Operating humidity | 90% RH max, non-condensing |
▇ External dimensions and mounting dimensions (11kw-55kw, Unit: mm)
| Description | L | B | H | E | F | D |
| 11kw-55kw | 265 | 154 | 165 | 219 | 140 | M6 |

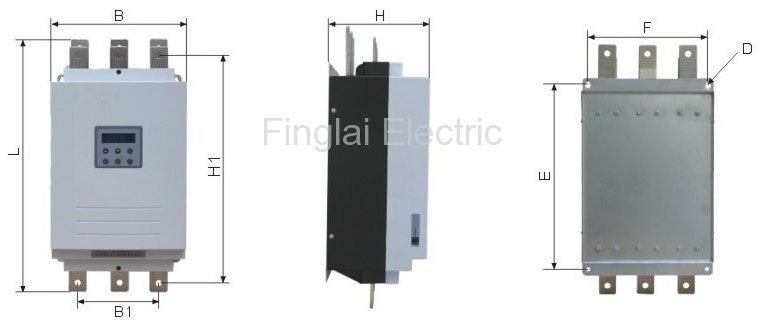

▇ External dimensions and mounting dimensions (75kw-320kw, Unit: mm)
| Description | L | B | H | E | F | D | B1 | H1 |
| 75kw-160kw | 531 | 260 | 204 | 380 | 230 | M8 | 160 | 490 |
| 200kw-320kw | 564 | 290 | 204 | 410 | 260 | M8 | 180 | 624 |

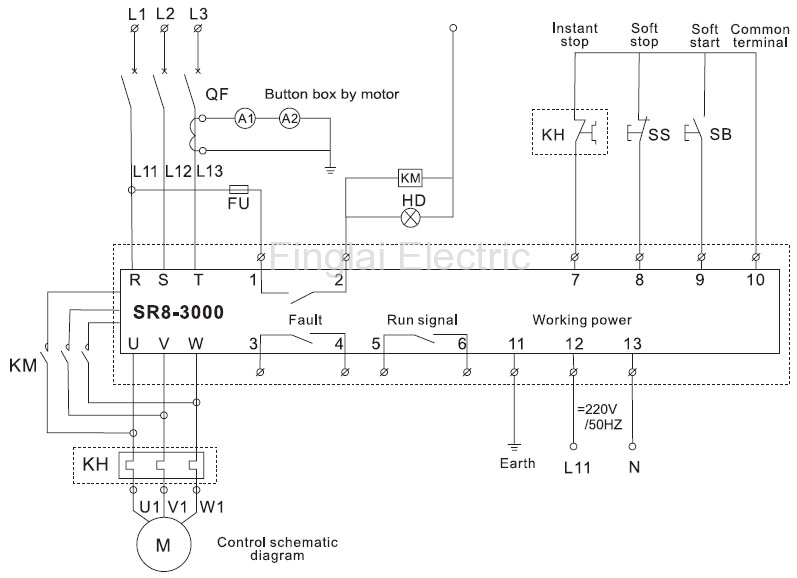

SR8-3000 soft starter wiring diagram
Packaging Details
Product quantity: 1pc
Package weight: 26kg
Package size: 56.4 x 29 x 20.4 cm
