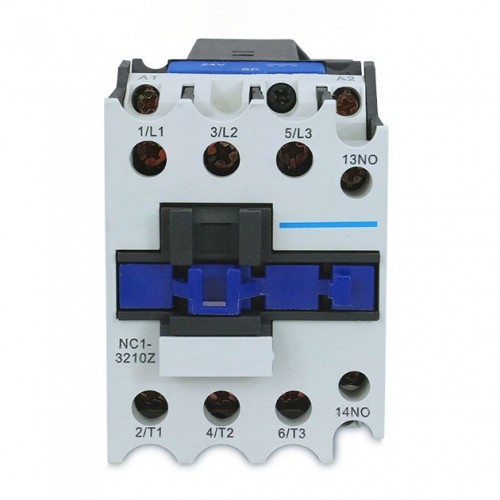

NC1-3210Z-24V DC contactor with 3P+NO contact form

Product features
Mouse over to zoom in
NC1-3210Z-24V DC contactor with 3P+NO contact form
Price: US $29.84 / piece
Model number: NC1-3210Z-24V
Product name: DC contactor
Contact form:
3P+NO
US $29.84
3P+NC
US $29.84
Deliver to:
Shipping:
US $22.19via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $52.03
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model number NC1-09 NC1-12 NC1-18 NC1-25 NC1-32 NC1-40 NC1-50 NC1-65 NC1-80 NC1-95
Online store:  US $7.03 - 15.69/ pieceOrder (8) US $9.48 - 16.59/ pieceOrder (8) US $9.89 - 18.83/ pieceOrder (8) US $10.63 - 24.67/ pieceOrder (8) Visiting... US $26.23 - 48.81/ pieceOrder (4) US $29.21 - 54.65/ pieceOrder (4) US $39.3 - 60.26/ pieceOrder (4) US $52.66 - 64.53/ pieceOrder (4) US $54.11 - 69.02/ pieceOrder (4)
Rated operational Current (AC-3) (A) at 380V 9 12 18 25 32 40 50 65 80 95
Rated operational Current (AC-3) (A) at 660V 6.6 8.9 12 18 21 34 39 42 49 49
Rated thermal current (A) 20 20 32 40 50 60 80 80 95 95
Maximum power (KW) at 220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
Maximum power (KW) at 380V 4 5.5 7.5 11 15 18.5 22 30 37 45
Maximum power (KW) at 660V 5.5 7.5 10 15 18.5 30 37 37 45 45
Mechanical life 104(ops) 1000 1000 1000 1000 800 800 800 800 600 600
AC3 electrical life 104(ops) 100 100 100 100 80 80 60 60 60 60
Maximum AC3 operations for 1 hour 1200 1200 1200 1200 600 600 600 600 600 600
AC4 electrical life 104(ops) 20 20 20 20 20 15 15 15 10 10
Maximum AC4 operations for 1 hour 300 300 300 300 300 300 300 300 300 300
Pick up (VA) 70 70 70 110 110 220 220 220 220 220
Sealed (VA) 9 9 9.5 14 14 57 57 57 57 57
Matched fuse NT00-20 NT00-20 NT00-32 NT00-40 NT00-50 NT00-63 NT00-80 NT00-80 NT00-100 NT00-125
Cabling capacity-1 flexible wire size (mm2) 2.5 2.5 4 4 6 10 16 25 50 50
Cabling capacity-1 solid or stranded wire size (mm2) 4 4 6 6 10 16 25 25 50 50
Cabling capacity-2 flexible wire size (mm2) 2.5 2.5 4 4 6 10 16 25 25 25
Cabling capacity-2 solid or stranded wire size (mm2) 4 4 6 6 10 - - - - -
NC1-32 DC contactor model number legend
NC1-32


Parent Model Number
10


Contact form
General
Model number NC1 series
Rated coil voltage 24, 36, 48, 110, 220, 380VAC; 24VDC
Pick up voltage 0.85 to 1.10Us
Drop out voltage 0.2 to 0.75Us
Rated operational voltage 380V/660V
Rated Insulating voltage 660V
Number of poles <40A: 3P+NO / 3P+NC; ≥40A: 3P+NO+NC
Operating frequency limits 50/60Hz
Auxiliary contacts rated thermal current 10A
Auxiliary contact electrical life (AC-15,360VA) (OPS) 1x104
Auxiliary contact electrical life (DC-13,33W) (OPS) 1x104
Auxiliary contact min. available load 6V 10mA
Operating altitude 2000m max
Operating position (relative to normal mounting position) ±5 degree
Pollution degree 3
Matched auxiliary contact NC1 series DC contactor auxiliary contact
Operating temperature -5 to +40 ℃
NC1-32 DC contactor child models
No Model Number Contact Form Coil Voltage MOQ Unit Price Related Product
1 NC1-3210Z-24V 3P+NO 24VDC 1 US $29.84 Visiting...
2 NC1-3210Z-220V 3P+NO 220VDC 1 US $29.84 Order
3 NC1-3210-220V 3P+NO 220VAC 1 US $16.65 Order
4 NC1-3210-380V 3P+NO 380VAC 1 US $16.65 Order
5 NC1-3201Z-24V 3P+NC 24VDC 1 US $29.84 Order Unfold
6 NC1-3201Z-220V 3P+NC 220VDC 1 US $29.84 Order
7 NC1-3201-220V 3P+NC 220VAC 1 US $16.65 Order
8 NC1-3201-380V 3P+NC 380VAC 1 US $16.65 Order
Packaging Details
Product quantity: 1pc
Package weight: 1kg
Package size: 14.5 x 8.5 x 10.5 cm
