CJX2-1201-220V AC contactor with 3P+NC contact form, 220VAC coil voltage

Product features
Mouse over to zoom in

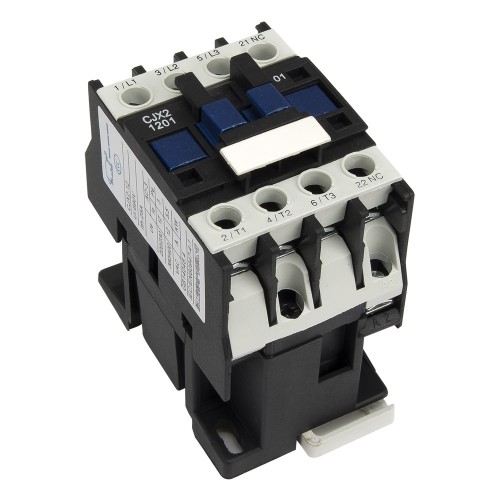

CJX2-1201 220V AC contactor
Price: US $3.75 / piece
Model number: CJX2-1201-220V
Product name: AC contactor
Deliver to:
Shipping:
US $11.21via
Estimated Delivery Time: 12-20 days
quantity:



Total price:US $14.96
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model number CJX2-09 CJX2-12 CJX2-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-65 CJX2-80 CJX2-95
Same model number LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Online store:  US $3.75 - 4.25/ pieceOrder (12) Visiting... US $3.87 - 4.36/ pieceOrder (12) US $6.09 - 6.58/ pieceOrder (12) US $6.34 - 6.83/ pieceOrder (12) US $14.01/ pieceOrder (6) US $14.46/ pieceOrder (6) US $16.26/ pieceOrder (6) US $20.08/ pieceOrder (6) US $20.75/ pieceOrder (6)
Rated operational Current (AC-3) (A) at 380V 9 12 18 25 32 40 50 65 80 95
Rated operational Current (AC-3) (A) at 660V 6.6 8.9 12 18 21 34 39 42 49 55
Rated thermal current (A) 20 20 32 40 50 60 80 80 125 125
Maximum power (KW) at 220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
Maximum power (KW) at 380V 4 5.5 7.5 11 15 18.5 22 30 37 45
Maximum power (KW) at 660V 5.5 7.5 9 15 18.5 30 33 37 45 55
Mechanical life 104(ops) 1000 1000 1000 1000 800 800 800 800 600 600
AC3 electrical life 104(ops) 100 100 100 100 80 80 60 60 60 60
Maximum AC3 operations for 1 hour 1200 1200 1200 1200 600 600 600 600 600 600
AC4 electrical life 104(ops) 20 20 20 20 20 15 15 15 10 10
Maximum AC4 operations for 1 hour 300 300 300 300 300 300 300 300 300 300
Pick up (VA) 70 70 70 110 110 220 220 220 220 220
Sealed (VA) 8 8 8 11 11 20 20 20 20 20
Matched fuse NT00-20 NT00-20 NT00-32 NT00-40 NT00-50 NT00-63 NT00-80 NT00-80 NT00-100 NT00-125
Cabling capacity-1 flexible wire size (mm2) 2.5 2.5 4 4 6 10 16 25 50 50
Cabling capacity-1 solid or stranded wire size (mm2) 4 4 6 6 10 16 25 25 50 50
Cabling capacity-2 flexible wire size (mm2) 2.5 2.5 4 4 6 10 16 25 25 25
Cabling capacity-2 solid or stranded wire size (mm2) 4 4 6 6 10 - - - - -
CJX2-12 AC contactor model number legend
CJX2-12


Parent Model Number
01


Contact form


10: 3P+NO


01: 3P+NC
-220V


Coil voltage


-220V: 220VAC


-380V: 380VAC


-110V: 110VAC


-48V: 48VAC


-36V: 36VAC


-24V: 24VAC
General
Model number CJX2 (LC1-D) series
Rated coil voltage 24, 36, 48, 110, 220, 380Vac
Pick up voltage 0.85 to 1.10Us
Drop out voltage 0.2 to 0.75Us
Rated operational voltage 380V/660V
Rated Insulating voltage 660V
Number of poles <40A: 3P+NO / 3P+NC; ≥40A: 3P+NO+NC
Operating frequency limits 50/60Hz
Auxiliary contacts rated thermal current 10A
Auxiliary contact electrical life (AC-15,360VA) (OPS) 1x104
Auxiliary contact electrical life (DC-13,33W) (OPS) 1x104
Auxiliary contact min. available load 6V 10mA
Operating altitude 2000m max
Operating position (relative to normal mounting position) ±5 degree
Pollution degree 3
Matched auxiliary contact 1NO+1NC2NO2NC2NO+2NC3NO+1NC
Operating temperature -5 to +40 ℃
CJX2-12 AC contactor child models
No Model Number Contact Form Coil Voltage MOQ Unit Price Related Product
1 CJX2-1210-220V 3P+NO 220VAC 1 US $3.75 Order
2 CJX2-1210-380V 3P+NO 380VAC 1 US $3.75 Order
3 CJX2-1210-110V 3P+NO 110VAC 1 US $3.75 Order
4 CJX2-1210-48V 3P+NO 48VAC 1 US $4.25 Order
5 CJX2-1210-36V 3P+NO 36VAC 1 US $4.25 Order Unfold
6 CJX2-1210-24V 3P+NO 24VAC 1 US $4.25 Order
7 CJX2-1201-220V 3P+NC 220VAC 1 US $3.75 Visiting...
8 CJX2-1201-380V 3P+NC 380VAC 1 US $3.75 Order
9 CJX2-1201-110V 3P+NC 110VAC 1 US $3.75 Order
10 CJX2-1201-48V 3P+NC 48VAC 1 US $4.25 Order
11 CJX2-1201-36V 3P+NC 36VAC 1 US $4.25 Order
12 CJX2-1201-24V 3P+NC 24VAC 1 US $4.25 Order
CJX2 series AC contactor drawing
Packaging Details
Package weight: 0.4kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
