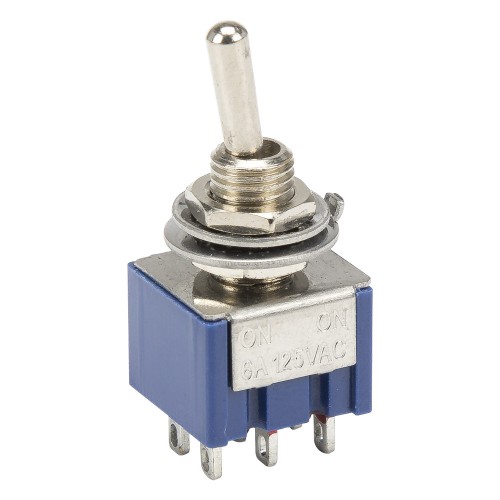

MTS-202 6mm perforate diameter self-lock 6 pins ON-ON DPST 2 positions toggle switch
30 sold
Product features
Mouse over to zoom in
MTS-202 6mm perforate diameter self-lock 6 pins ON-ON DPST 2 positions toggle switch
Price: US $0.22 / piece
Model number: MTS-202
Product name: Toggle switch
Deliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Total price:US $10.02
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and circuit characteristic
| Model number | Circuit characteristic | Terminal | Online store:
|
| MTS-202 | ON-ON | Solder | Visiting... |
| MTS-203 | ON-OFF-ON | Solder | US $0.24/ pieceOrder |
| MTS-213 | ON-OFF-(ON) | Solder | US $0.66/ pieceOrder |
| MTS-223 | (ON)-OFF-(ON) | Solder | US $0.54/ pieceOrder |
▇ General
| Model number |
MTS-201 Series |
| Contact form |
DPST, DPDT |
| Contact rating |
6A@125Vac / 3A@250Vac |
| Contact resistance |
20mΩ max |
| Insulation resistance |
1000MΩ min at 500Vdc |
| Dielectric strength |
1500Vac, 50Hz for 1min |
| Electrical Life |
10000 cycles |
| Matched waterproof cap |
FJT6 |
| Operating temperature |
-25 to 85℃ |
MTS-202 DPDT toggle switch drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
