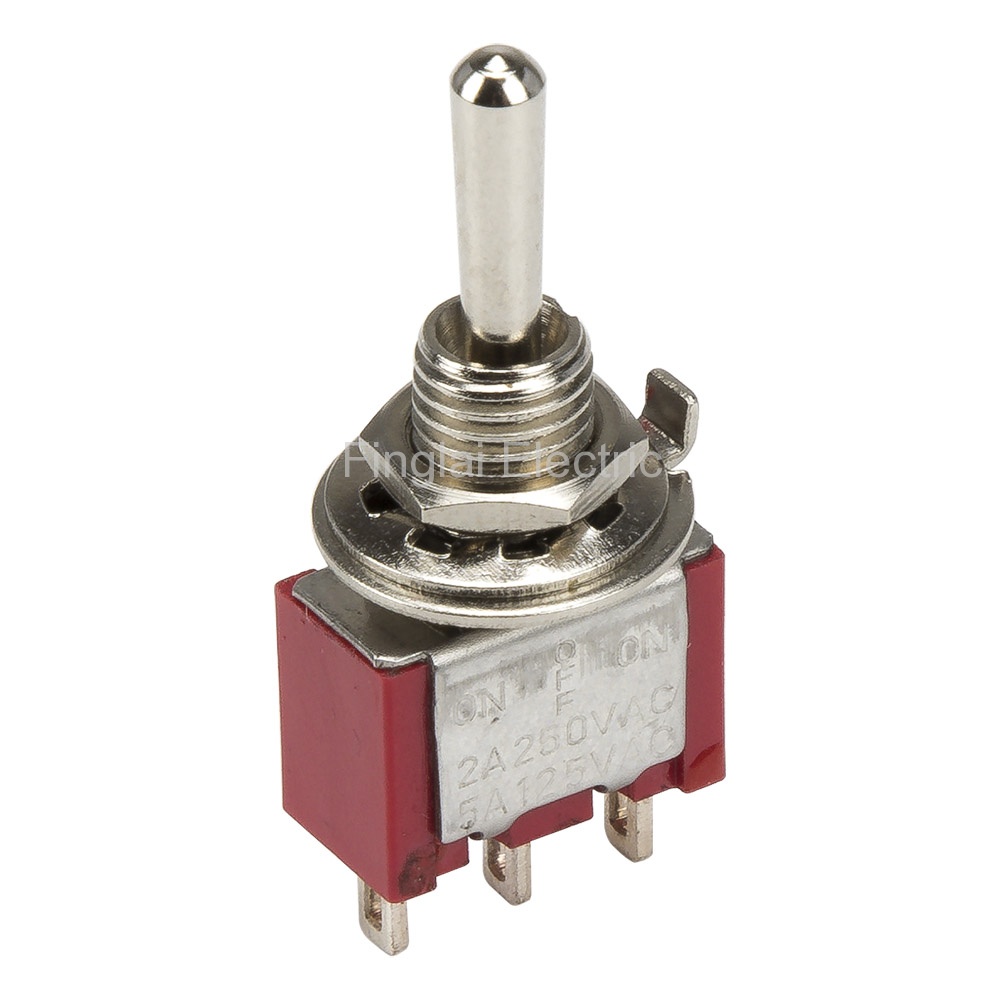

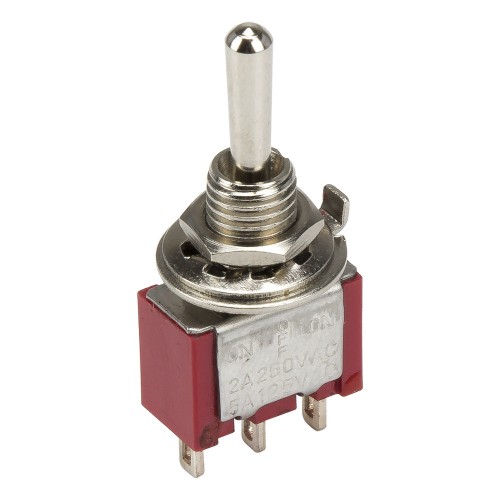

MTS-123 6mm perforate diameter 2 reset 3 pins (ON) - OFF - (ON) SPDT 3 positions toggle switch
Product features
Mouse over to zoom in
MTS-123 6mm perforate diameter 2 reset 3 pins (ON) - OFF - (ON) SPDT 3 positions toggle switch
Price: US $0.47 / piece
Model number: MTS-123
Product name: Toggle switch
Deliver to:
Shipping:
US $5.97via
Estimated Delivery Time: 9-15 days
Total price:US $10.67
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and circuit characteristic
| Model number | Circuit characteristic | Terminal | Online store:
|
| MTS-101 | ON-OFF | Solder | US $0.19/ pieceOrder |
| MTS-102 | ON-ON | Solder | US $0.21 - 0.3/ pieceOrder (2) |
| MTS-103 | ON-OFF-ON | Solder | US $0.27 - 0.31/ pieceOrder (2) |
| MTS-112 | ON-(ON) | Solder | US $0.42/ pieceOrder |
| MTS-113 | ON-OFF-(ON) | Solder | US $0.45/ pieceOrder |
| MTS-123 | (ON)-OFF-(ON) | Solder | Visiting... |
▇ General
| Model number |
MTS-101 Series |
| Contact form |
SPST, SPDT |
| Contact rating |
6A@125Vac / 3A@250Vac |
| Contact resistance |
20mΩ max |
| Insulation resistance |
1000MΩ min at 500Vdc |
| Dielectric strength |
1500Vac, 50Hz for 1min |
| Electrical Life |
10000 cycles |
| Matched waterproof cap |
FJT6 |
| Operating temperature |
-25 to 85℃ |
MTS-101 toggle switch drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
