SMTS-102 series 5mm perforate diameter 3 pins ON - ON SPST 2 positions toggle switches
20 sold
Product features
Mouse over to zoom in

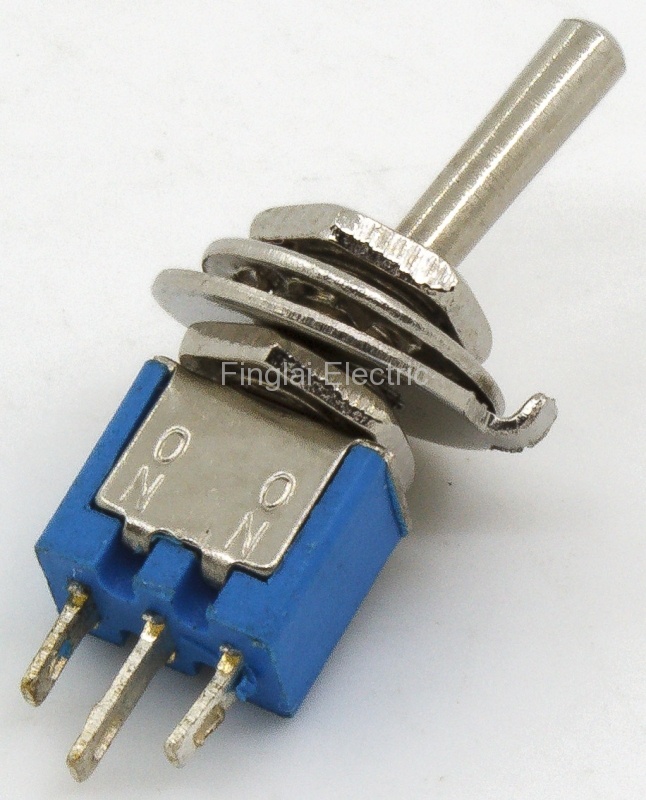

SMTS-102 series 5mm perforate diameter 3 pins ON - ON SPST 2 positions toggle switches
Price: US $0.19 / piece
Model number: SMTS-102
Product name: Toggle switch
Deliver to:
Shipping:
US $6.66via
Estimated Delivery Time: 9-17 days
Total price:US $8.56
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and circuit characteristic
| Model number | Circuit characteristic | Terminal | Online store:
|
| SMTS-102 | ON-ON | Solder | Visiting... |
▇ General
| Model number |
SMTS-102 Series |
| Contact form |
SPDT |
| Contact rating |
6A@125Vac / 3A@250Vac |
| Contact resistance |
20mΩ max |
| Insulation resistance |
1000MΩ min at 500Vdc |
| Dielectric strength |
1500Vac, 50Hz for 1min |
| Electrical Life |
10000 cycles |
| Operating temperature |
-25 to 85℃ |

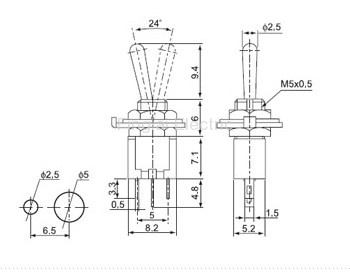

SMTS-102 toggle switch drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
