YDT1-20 aluminum case forward and reverse foot switch with two wires
1 sold
Product features
Mouse over to zoom in

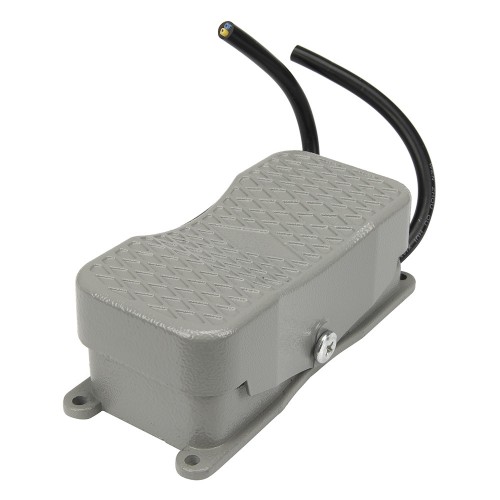

YDT1-20 aluminum case forward and reverse foot switch with two wires
Price: US $5.93 / piece
Model number: YDT1-20
Product name: Foot switch
Deliver to:
Shipping:
US $18.85via
Estimated Delivery Time: 9-17 days
Total price:US $24.78
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Online store:
|
| YDT1-20 | Visiting... |
▇ General
| Model number |
YDT1-20 |
| Contact form |
1NO+1NC |
| Action method |
Reset |
| Contact rating |
15A@250VAC |
| Case material |
Aluminum |
| Contact resistance |
50mΩ max (First time) |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Machine life |
1x106 operations min |
| Electrical Life |
1x105 operations min |
| IP Rating |
IP62 |
| Operating temperature |
-25-70 ℃ |
| Operating humidity |
45 to 85% RH, no condensation |
| Alias name |
YDT1-20 pedal switch |

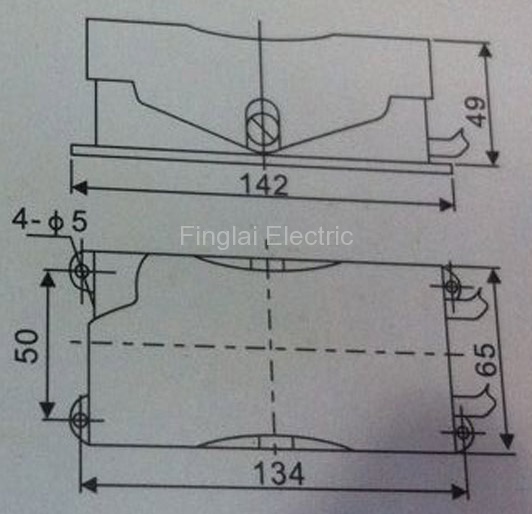

YDT1-20 foot switch drawing
YDT1-20 single phase type wiring diagram
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 14.5 x 8.5 x 10.5 cm
