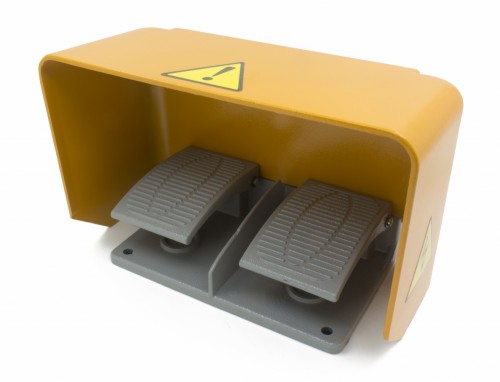

YDT1-18 aluminum case silver contact reset double pedal foot switch

Product features
Mouse over to zoom in
YDT1-18 aluminum case silver contact reset double pedal foot switch
Price: US $19.28 / piece
Model number: YDT1-18
Product name: Foot switch
Deliver to:
Shipping:
US $74.01via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $93.29
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberOnline store:
YDT1-18Visiting...
▇ General
Model number YDT1-18
Contact form 1NO+1NC
Action method Reset
Contact rating 6A@380VAC
Case material Aluminum
External dimensions 210x170x150mm
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name YDT1-18 pedal switch
Packaging Details
Product quantity: 1pc
Package weight: 2.4kg
Package size: 26 x 15 x 18 cm
