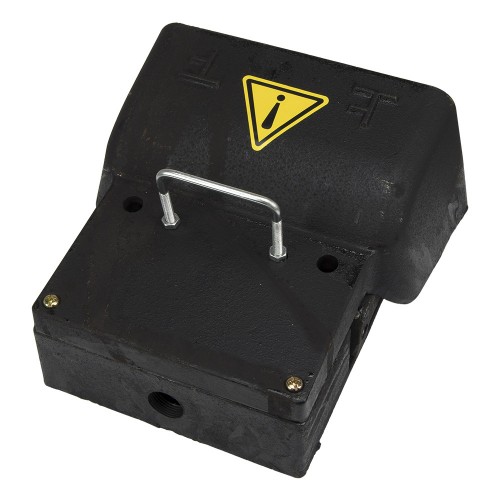

YDT1-14 iron case double silver contact pedal foot switch
Product features
Price: US $20.04 / piece
Model number: YDT1-14
Product name: Foot switch
Deliver to:
Shipping:
US $192.33via
Estimated Delivery Time: 3-8 days
Total price:US $212.37
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Online store:
|
| YDT1-14 | LT4 | Visiting... |
▇ General
| Model number |
YDT1-14 |
| Contact form |
1NO+1NC |
| Action method |
Reset |
| Contact rating |
5A@380VAC |
| Case material |
Iron |
| External dimensions |
205x170x130mm |
| Contact resistance |
50mΩ max (First time) |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Machine life |
1x106 operations min |
| Electrical Life |
1x105 operations min |
| IP Rating |
IP62 |
| Operating temperature |
-25-70 ℃ |
| Operating humidity |
45 to 85% RH, no condensation |
| Alias name |
YDT1-14 double pedal switch |
Packaging Details
Product quantity: 1pc
Package weight: 9.5kg
Package size: 26 x 15 x 18 cm
