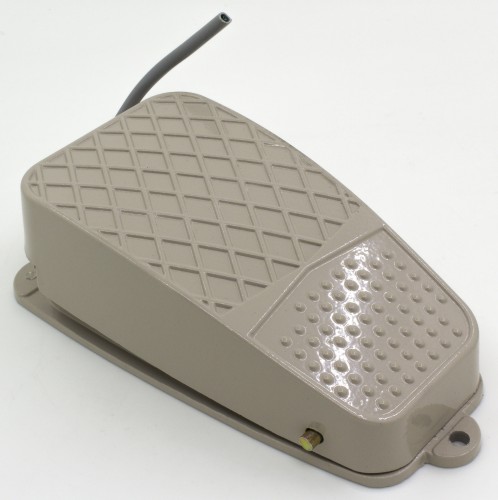

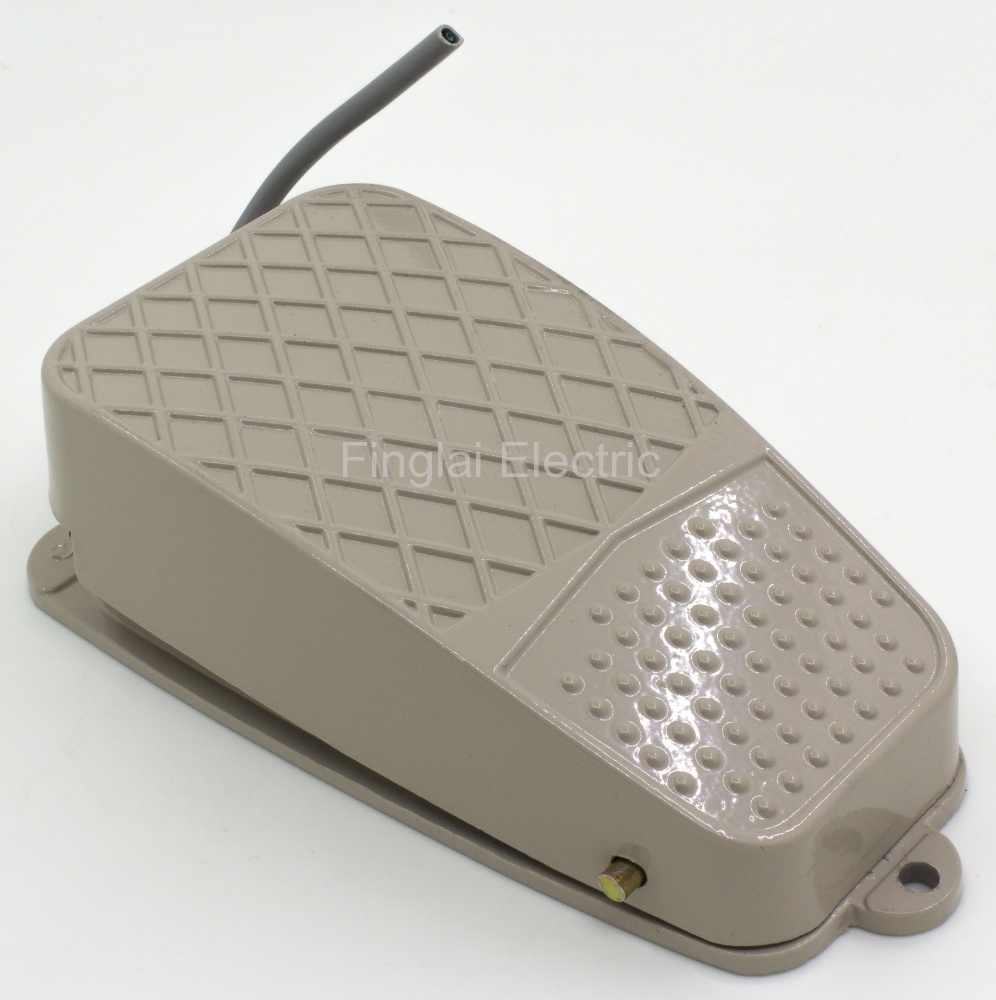

TFS-3 series aluminium case silver contact reset foot switches

Main child models
Mouse over to zoom in
Price: US $2.79 / piece
Model number: TFS-3-AHR0.1
Product name: Foot switch
Case material and color:
Aluminum gray
Case color:
GrayGreen
Action method:
Reset
Cable length:
0.1m1m
View details
Product description
▇ Model number and parameters
Model numberSame modelOnline store:
TFS-3FS-3Visiting...
▇ TFS-3 foot switch model number legend
TFS-3
Parent Model Number
Case material and color
-A: Aluminum gray
Case color
H: Gray
G: Green
Action method
R: Reset
Cable length
0.1: 0.1m
1: 1m
▇ General
Model number TFS-201
Contact form 1NO+1NC
Action method Reset
Contact rating 10A@250VAC
Case material Aluminum
Cable length 0.1m, 1m
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name FS-3 pedal switch
▇ TFS-3 foot switch child models
No Model Number Case Material And Color Case Color Action Method Cable Length MOQ Unit Price
1 TFS-3-AHR0.1 Aluminum gray Gray Reset 0.1m 1 US $2.79
2 TFS-3-AGR1 Aluminum gray Green Reset 1m 1 US $3.46

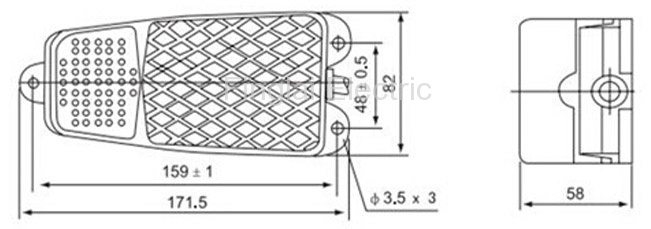

TFS-3 foot switch drawing
