TFS-1 series reset foot switch
Main child models
Product description
▇ Model number and parameters
| Model number | Same model | Online store: |
| TFS-1 | FS-1 | Visiting... |
▇ TFS-1 foot switch model number legend
TFS-1
Parent Model Number
▇ General
| Model number | TFS-1 |
| Contact form | 1NO+1NC |
| Action method | Reset |
| Contact rating | 10A@250VAC |
| Case material | Plastic, iron |
| Cable length | 0.1m, 2m |
| Contact resistance | 50mΩ max (First time) |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Machine life | 1x106 operations min |
| Electrical Life | 1x105 operations min |
| IP Rating | IP62 |
| Operating temperature | -25-70 ℃ |
| Operating humidity | 45 to 85% RH, no condensation |
| Alias name | TFS-1 pedal switch |
▇ TFS-1 foot switch child models
| No | Model Number | Case Material | Action Method | Cable Length | MOQ | Unit Price |

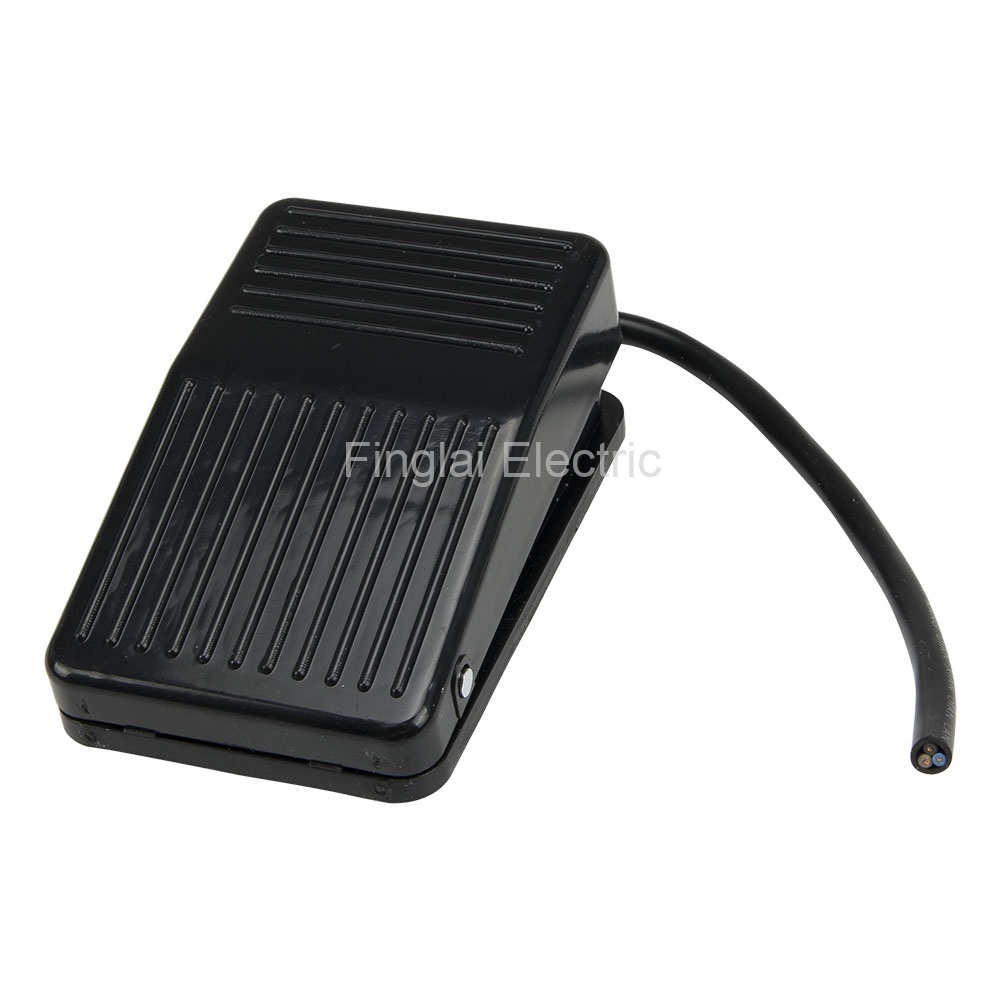

| 1 | TFS-1-PR0.1 | Plastic | Reset | 0.1m | 1 | US $0.98 |
| 2 | TFS-1-FR0.1 | Iron | Reset | 0.1m | 1 | US $1.48 |
| 3 | TFS-1-FR1 | Iron | Reset | 1m | 1 | US $1.86 |
| 4 | TFS-1-FR2 | Iron | Reset | 2m | 1 | US $2.16 |

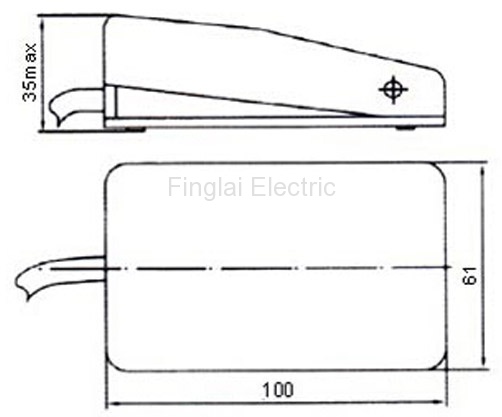

TFS-1 plastic foot switch drawing
TFS-1 iron foot switch dimensions
