LT3 green aluminium case silver contact reset foot switch for machine tool control
Product features
Mouse over to zoom in
LT3 green aluminium case silver contact reset foot switch for machine tool control
Price: US $5.26 / piece
Model number: LT3-AGR
Product name: Foot switch
Deliver to:
Shipping:
US $29.01via
Estimated Delivery Time: 9-17 days
Total price:US $34.27
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Online store:
|
| LT3 | TFS-402 | Visiting... |
▇ LT3 foot switch model number legend
▇ General
| Model number |
LT3 |
| Contact form |
1NO+1NC |
| Action method |
Reset |
| Contact rating |
3A@250VAC |
| Case material |
Aluminum |
| External dimensions |
198x97.6x72mm |
| Contact resistance |
50mΩ max (First time) |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Machine life |
1x106 operations min |
| Electrical Life |
1x105 operations min |
| IP Rating |
IP62 |
| Operating temperature |
-25-70 ℃ |
| Operating humidity |
45 to 85% RH, no condensation |
| Alias name |
TFS-402 pedal switch |
▇ LT3 foot switch child models
| No |
Model Number |
Case Material |
Case Color |
Action Method |
MOQ |
Unit Price |
Related Product |
| 1 |
LT3-AHR |
Aluminum |
Gray |
Reset |
1 |
US $5.26 |
Order |
| 2 |
LT3-AGR |
Aluminum |
Green |
Reset |
1 |
US $5.26 |
Visiting... |

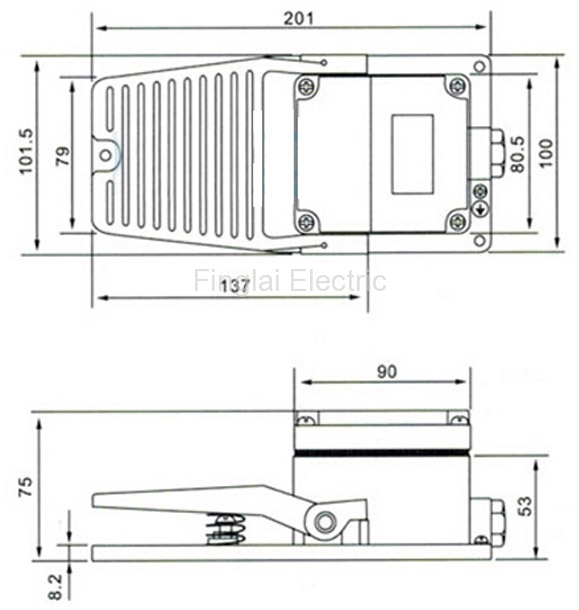

LT3 foot switch drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.85kg
Package size: 21 x 11 x 14 cm
