LT1-11 iron foot switch

Product features
Price: US $16.26 / piece
Model number: LT1-11
Product name: Foot switch
Deliver to:
Shipping:
US $26.11via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $42.37
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberOnline store:
LT1-11Visiting...
▇ General
Model number LT1-11
Contact form 1NO+1NC
Action method Reset
Contact rating 10A@380VAC
Case material Iron
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name LT1-11 pedal switch

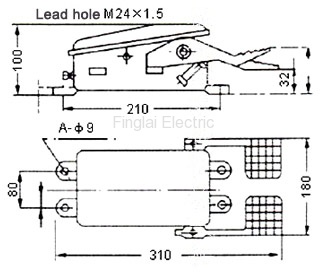

LT1-11 foot switch drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.75kg
Package size: 21 x 11 x 14 cm
