EKW-5A-B series foot switches

Main child models
Mouse over to zoom in
Price: US $1.98 / piece

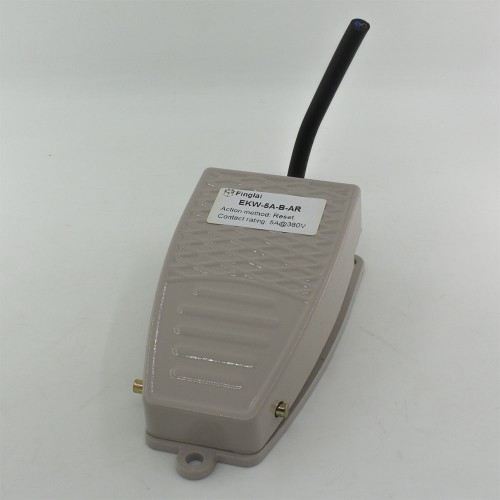

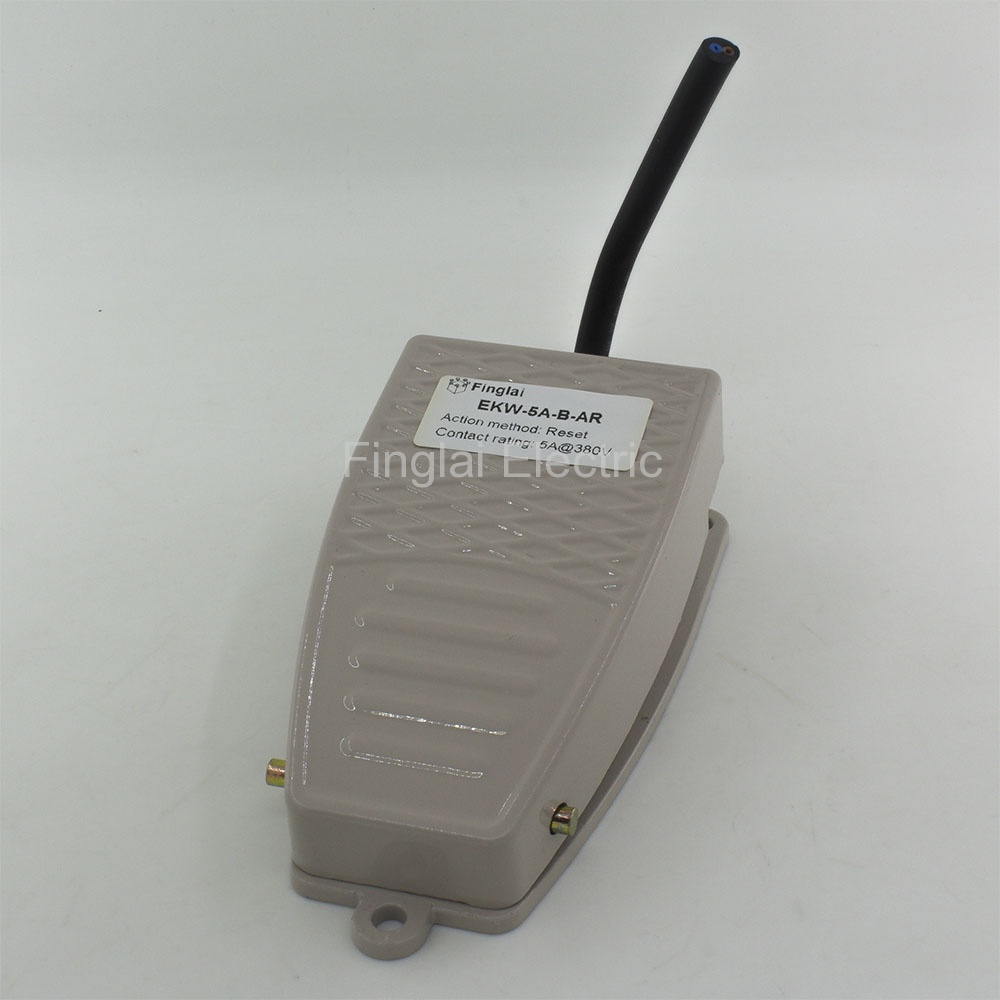

Model number: EKW-5A-B-AR
Product name: Foot switch
Case material:
AluminumPlastic
Action method:
ResetSelf-lock
View details
Product description
▇ Model number and parameters
Model numberOnline store:
EKW-5A-BVisiting...
▇ EKW-5A-B foot switch model number legend
EKW-5A-B
Parent Model Number
Case material
-A: Aluminum
-P: Plastic
Action method
R: Reset
L: Self-lock
▇ General
Model number EKW-5A-B
Contact form 1NO+1NC
Action method Reset
Contact rating 5A@220VAC
Case material Aluminum, plastic
Cable length 0.1m
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name EKW-5A-B pedal switch
▇ EKW-5A-B foot switch child models
No Model Number Case Material Action Method MOQ Unit Price
1 EKW-5A-B-AR Aluminum Reset 1 US $1.98
2 EKW-5A-B-AL Aluminum Self-lock 1 US $2.45
3 EKW-5A-B-PR Plastic Reset 1 US $1.66
