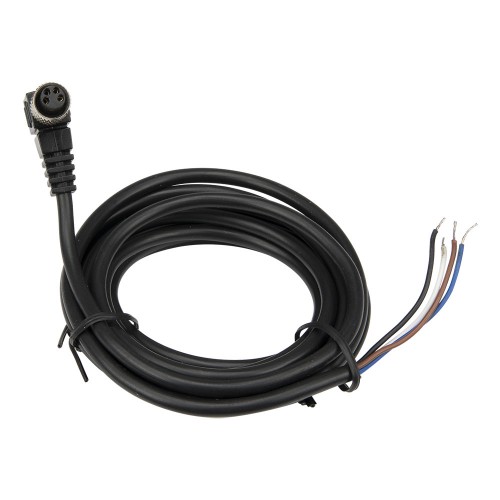

FSC8-FB-4 series sensor connectors
Main child models
Product description
▇ Model number and parameters
| Model number | Gender | Head shape | Core number | Online store: |
| FSC8-FB-3 | Female | 90°bending | 3 | US $3.3 - 6.89/ pieceOrder (3) |
| FSC8-FB-4 | Female | 90°bending | 4 | Visiting... |
| FSC8-FS-3 | Female | Straight | 3 | US $3.3 - 7.56/ pieceOrder (5) |
| FSC8-FS-4 | Female | Straight | 4 | US $3.3 - 6.89/ pieceOrder (5) |
| FSC8-MB-3 | Male | 90°bending | 3 | |
| FSC8-MB-4 | Male | 90°bending | 4 | US $4.01 - 4.64/ pieceOrder (2) |
| FSC8-MS-3 | Male | Straight | 3 | US $3.3 - 4.64/ pieceOrder (2) |
| FSC8-MS-4 | Male | Straight | 4 | US $3.3 - 4.64/ pieceOrder (2) |
▇ FSC8-FB-4 sensor connector model number legend
▇ General
| Model number | FSC8 series |
| Thread size | M8 |
| Cable material | Default is PVC, can make PUR (high temperature resistance, high oil resistance) |
| Cable length | Default is 2m, can be customized |
| Cable color | Black, Orange |
| IP Rating | IP67 |
| Alias name | FSC8 series proximity sensor plug |
▇ FSC8-FB-4 sensor connector child models
| No | Model Number | Cable Material | Cable Length | Cable Color | MOQ | Unit Price |
| 1 | FSC8-FB-4V2-B | PVC | 2m | Black | 1 | US $3.3 |
| 2 | FSC8-FB-4V5-B | PVC | 5m | Black | 1 | US $4.64 |
| 3 | FSC8-FB-4V10-B | PVC | 10m | Black | 1 | US $6.89 |
