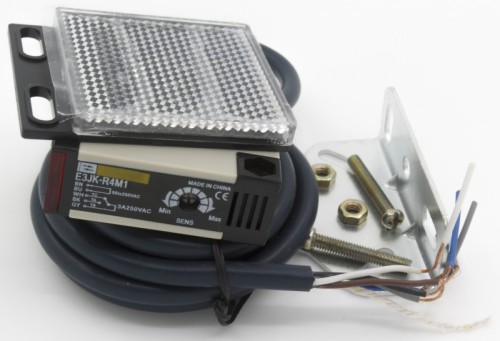

E3JK-R4M1 AC 90-250V 4m sensing Light-ON retroreflective prism relay photoelectric sensor

Product features
Mouse over to zoom in
E3JK-R4M1 AC 90-250V 4m sensing Light-ON retroreflective prism relay photoelectric sensor
Price: US $4.05 / piece
Model number: E3JK-R4M1A
Product name: Prism relay photoelectric sensor
Deliver to:
Shipping:
US $8.32via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $12.37
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Operating form and model number
Current typeOperating formSwitch stateModel numberSupply voltageOnline store:
DCRelayLight-ONE3JK-R4M1D12-24VdcUS $4.05/ pieceOrder
ACRelayLight-ONE3JK-R4M1A90-250VacVisiting...
DC/ACRelayLight-ONE3JK-R4M1DA12-240Vdc/24-240VacUS $8.45/ pieceOrder
DCRelayDark-ONE3JK-R4M2D12-24VdcUS $4.16/ pieceOrder
ACRelayDark-ONE3JK-R4M2A90-250VacUS $4.16/ pieceOrder
DC/ACRelayDark-ONE3JK-R4M2DA12-240Vdc/24-240VacUS $8.45/ pieceOrder
General
Model number E3JK-R4 series
External dimensions 18x50x50 mm
Sensing method Retroreflective
Detection distance 4m±10%
Sensitivity adjustment Adjustable
Supply voltage 12-24Vdc; 90-250Vac; 12-240Vdc/24-240Vac
Rated output current Relay: 3A@250VAC max, 10mA@5VDC min
Sensing object Opaque object
Response frequency 25Hz
Response time 30ms max
Light state E3JK-R4M1: align to reflector, the LED is not light, when an object is between them, the LED will light.
E3JK-R4M2: align to reflector, the LED is light, when an object is between them, the LED will not light.
Protection circuit DC: Reverse polarity protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP64
Cable length 1.2m, PVC cable
Material Case: ABS; Sensing surface (lens): PMMA
Matched reflector TD-08 (Default has this)
Operating temperature -30 to 65 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
Packaging Details
Product quantity: 1pc
Package weight: 0.23kg
Package size: 14.5 x 8.5 x 10.5 cm
