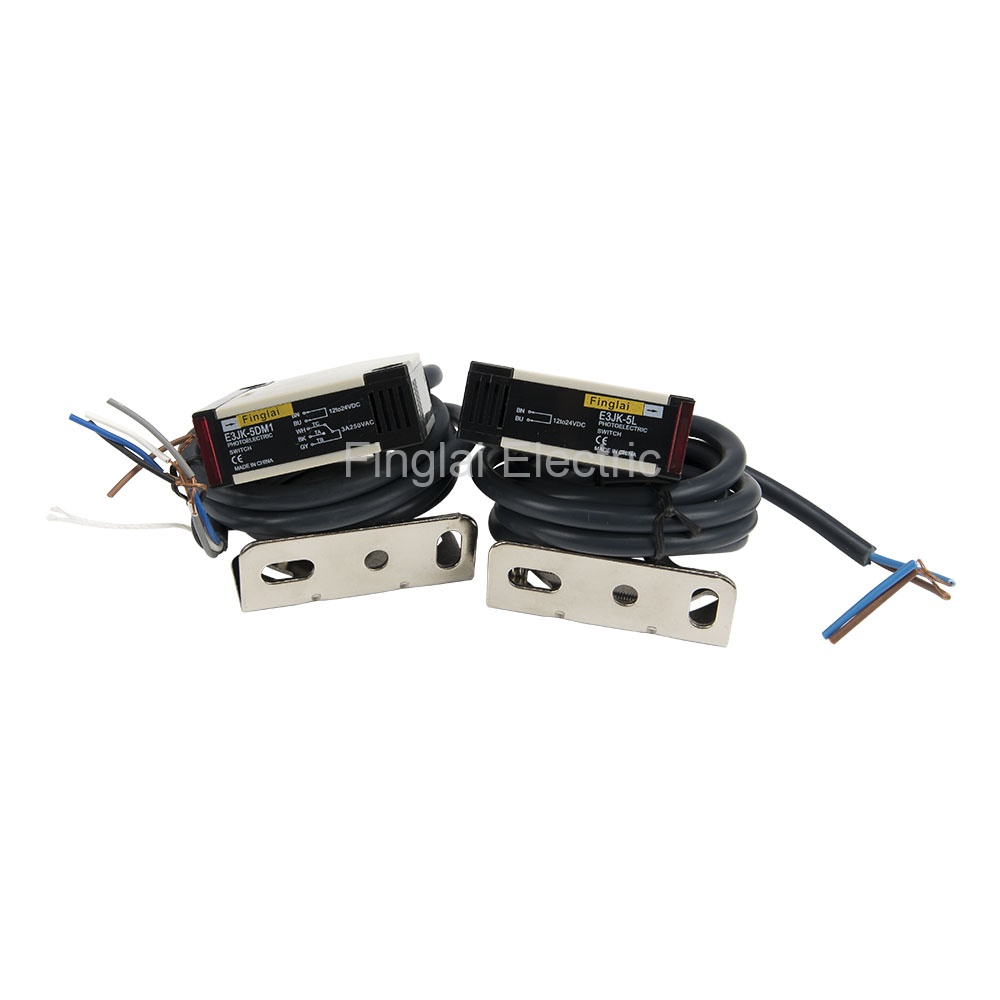

E3JK-5DM1 Light-ON DC 12-24V 18x50x50mm 5m sensing through beam photoelectric sensor switch with E3JK-5L

Product features

Mouse over to zoom in

Price: US $6.06 / piece

Model number: E3JK-5DM1D

Product name: Prism relay photoelectric sensor

Deliver to:

Shipping:

US $9.56via

Estimated Delivery Time: 9-15 days

Quantity:

Total price:US $15.62

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Operating form and model number

▇ General

Model number	E3JK-5 series
External dimensions	18x50x50 mm
Sensing method	Through beam
Detection distance	5m±10%
Sensitivity adjustment	Fixed
Supply voltage	12-24Vdc; 90-250Vac; 12-240Vdc/24-240Vac
Rated output current	3A@250VAC max, 10mA@5VDC min
Sensing object	Opaque object
Response frequency	25Hz
Response time	30ms max
Protection circuit	DC: Reverse polarity protection, Surge suppressor, Short-circuit protection AC: Surge suppressor
Insulation resistance	50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength	1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence	±10% max. of sensing distance in rated voltage range ±15%
IP Rating	IP64
Cable length	1.2m, PVC cable
Material	Case: ABS; Sensing surface (lens): PMMA
Operating temperature	-30 to 65 °C (with no icing or condensation)
Operating humidity	Storage: 35% to 95% (without condensation)

Packaging Details

Product quantity: 1pc

Package weight: 0.3kg

Package size: 14.5 x 8.5 x 10.5 cm
