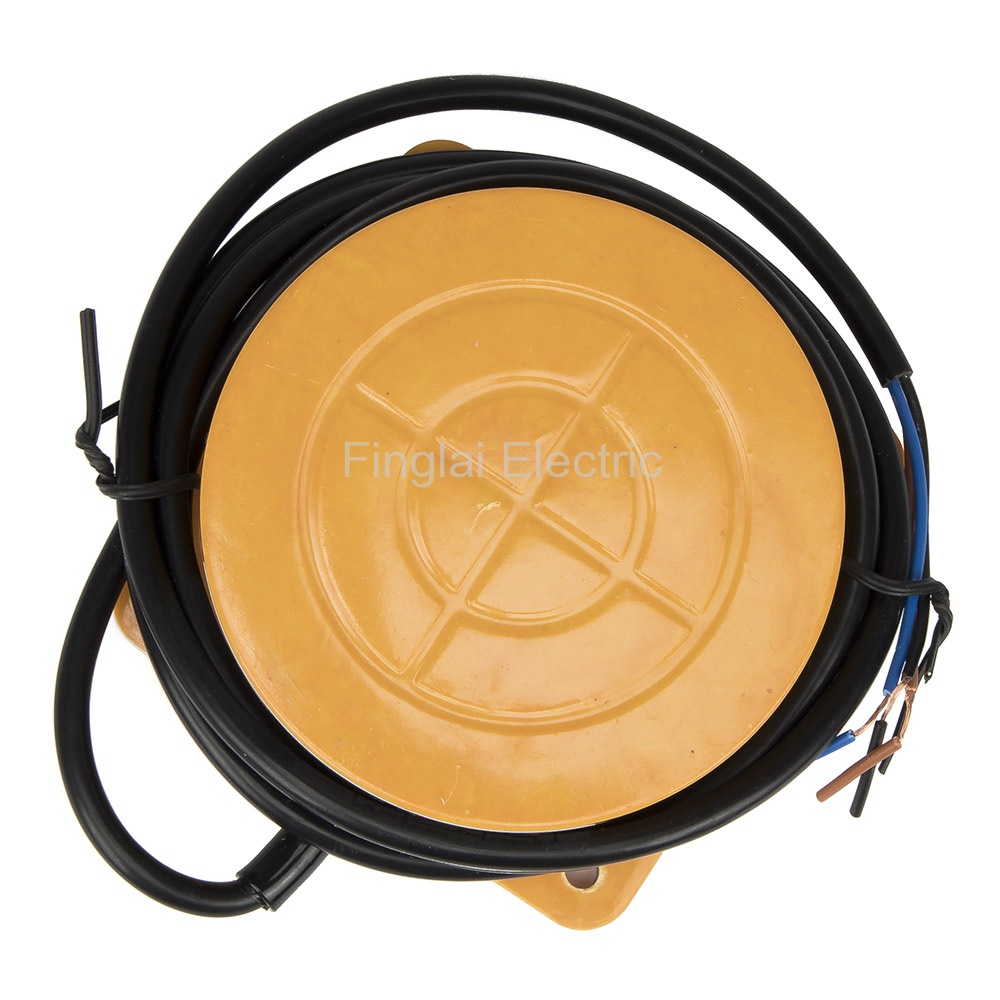

GPM40-80B-P2 panel mounting inductive proximity sensor

Product features
Mouse over to zoom in
GPM40-80B-P2 panel mounting inductive proximity sensor
Price: US $8.45 / piece
Model number: GPM40-80B-P2
Product name: Panel mounting inductive proximity sensor
Deliver to:
Shipping:
US $18.6via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $27.05
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Operating form and model number
Current typeOperating formContact formConnection formModel numberOnline store:
DCNPNNOWire leadGPM40-80B-N1US $11.43/ pieceOrder
DCNPNNCWire leadGPM40-80B-N2US $8.45/ pieceOrder
DCNPNNO+NCWire leadGPM40-80B-N4
DCPNPNOWire leadGPM40-80B-P1US $8.45/ pieceOrder
DCPNPNCWire leadGPM40-80B-P2Visiting...
DCPNPNO+NCWire leadGPM40-80B-P4
DCTwo wiresNOWire leadGPM40-80B-D1
DCTwo wiresNCWire leadGPM40-80B-D2
ACTwo wiresNOWire leadGPM40-80B-A1
ACTwo wiresNCWire leadGPM40-80B-A2
ACThree wiresNO+NCWire leadGPM40-80B-W
General
Model number GPM40-80B series
External dimensions Φ80x40
Installation type Non-shielded
Detection distance 40mm±10%
Setting distance 0-35 mm
Supply voltage 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object Mild steel (80x80x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency NPN or PNP: 0.2kHz; Two wires of DC: 0.2kHz; Two wires of AC: 25Hz
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: ABS; Sensing surface: ABS
Packaging Details
Product quantity: 1pc
Package weight: 0.8kg
Package size: 21 x 11 x 14 cm
