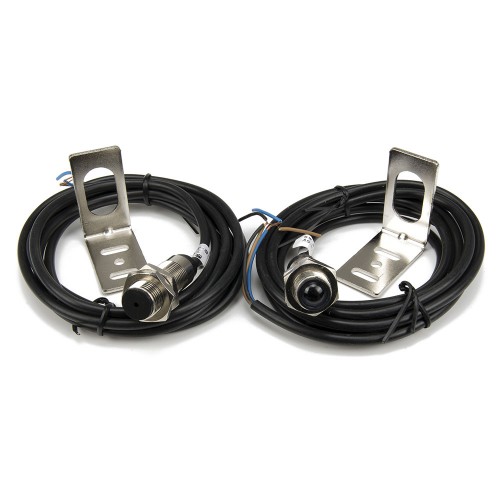

E3F12-30DN1-5V M12 30m sensing DC 5V NPN NO laser through beam cylinder amplifier photoelectric switch sensor

Product features
Mouse over to zoom in
E3F12-30DN1-5V M12 30m sensing DC 5V NPN NO laser through beam cylinder amplifier photoelectric switch sensor
Price: US $7.87 / piece
Model number: E3F12-30DN1-5V
Product name: Cylinder amplifier photoelectric sensor
Deliver to:
Shipping:
US $9.56via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $17.43
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
Current typeOperating formContact formModel numberOnline store:
DCNPNLight-on: output 5V, light-off: output 0VE3F12-30DN1-5VVisiting...
▇ General
Model number E3F12-30 series
External dimensions M12x35
Sensing method Through beam
Detection distance 0-30m
Sensitivity adjustment Fixed
Supply voltage Receiver: 5Vdc, sender: 5Vdc
Rated output current 10mA max
Sensing object Opaque object
Light source Laser
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP65
Material Case: Brass-nickel plated; Sensing surface (lens): PMMA
Operating temperature -25 to 55 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
Laser cylinder amplifier photoelectric sensor's amounting
Laser cylinder amplifier photoelectric sensor's application
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 13 x 8 x 9 cm
