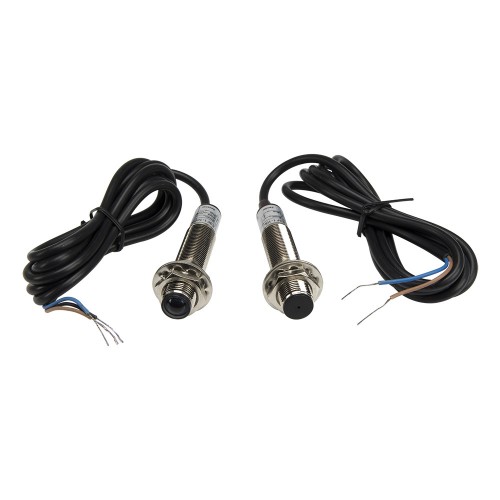

E3F1-10DN1 M12 10m sensing DC 6-36V NPN NO laser through beam cylinder amplifier photoelectric switch sensor

Product features
Mouse over to zoom in
E3F1-10DN1 M12 10m sensing DC 6-36V NPN NO laser through beam cylinder amplifier photoelectric switch sensor
Price: US $8.85 / piece
Model number: E3F1-10DN1
Product name: Cylinder amplifier photoelectric sensor
Deliver to:
Shipping:
US $8.66via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $17.51
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Operating form and model number
Current typeOperating formContact formModel numberOnline store:
DCNPNNOE3F1-10DN1Visiting...
DCNPNNCE3F1-10DN2
DCPNPNOE3F1-10DP1
DCPNPNCE3F1-10DP2
General
Model number E3F1-10 series
External dimensions M12
Sensing method Through beam
Detection distance 10m
Sensitivity adjustment Fixed
Supply voltage 6-36Vdc
Rated output current 300mA max
Sensing object Opaque object
Response time 2.5ms max
Light source Laser (650 nm)
Leakage current 20mA max
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP65
Material Case: Brass-nickel plated; Sensing surface (lens): PMMA
Operating temperature -35 to 65 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
Laser cylinder amplifier photoelectric sensor's amounting
Laser cylinder amplifier photoelectric sensor's application
Packaging Details
Product quantity: 1pc
Package weight: 0.25kg
Package size: 13 x 8 x 9 cm
