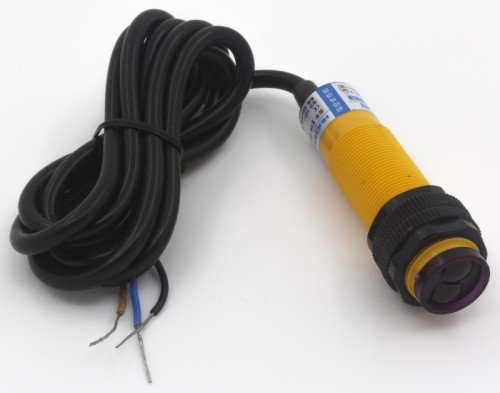

E18-D80NK cylinder amplifier photoelectric sensor

Product features
Mouse over to zoom in
E18-D80NK cylinder amplifier photoelectric sensor
Price: US $3.15 / piece
Model number: E18-D80NK
Product name: Cylinder amplifier photoelectric sensor
Deliver to:
Shipping:
US $6.15via
Estimated Delivery Time: 12-24 days
quantity:



Total price:US $9.3
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Operating form and model number
Current typeOperating formContact formModel numberOnline store:
DCNPNNOE18-D80NKVisiting...
General
Model number E18-D80 series
External dimensions M18x1x70
Sensing method Diffuse reflective
Detection distance 3-80 cm
Sensitivity adjustment Adjustable
Supply voltage 5Vdc
Rated output current 100 mA
Sensing object Opaque object
Response time 2ms max
Light source sunlight: <10000LX  filament lamp: <3000LX
Leakage current DC Type: 25mA max
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
Cable length 1.2 m
Material Case: ABS; Sensing surface (lens): PMMA
Operating temperature -25 to 55 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
Packaging Details
Package weight: 0.1kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
