BZJ-211 color sensor

Product features
Mouse over to zoom in

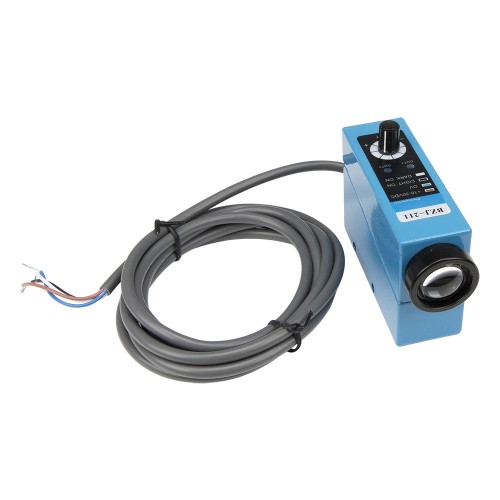

BZJ-211 color sensor
Price: US $40.97 / piece
Model number: BZJ-211
Product name: Color sensor
Deliver to:
Shipping:
US $11.37via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $52.34
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
Current typeOperating formContact formModel numberOnline store:
DCNPNNO+NCBZJ-211Visiting...
▇ General
Model number BZJ-211 series
External dimensions 28x57x85
Sensing method Coaxial reflex
Light source chromatogram Red, green, blue, white
Light spot (color) Round spot (green)
Detection distance 10mm±2mm
Sensitivity adjustment Adjustable
Supply voltage 10-30Vdc±10%
Rated output current N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times)
Sensing object Opaque object
Response time 50uS
Light source Infrared LED (660 nm)
Leakage current N.P Type: 20mA max; A Type: 1.7mA max
Protection circuit Reverse polarity protection, Surge suppressor, Short-circuit protection
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: Aluminum die-cast (ABS); Sensing surface (lens): PMMA
Operating temperature 0 to 50 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 14.5 x 8.5 x 10.5 cm
