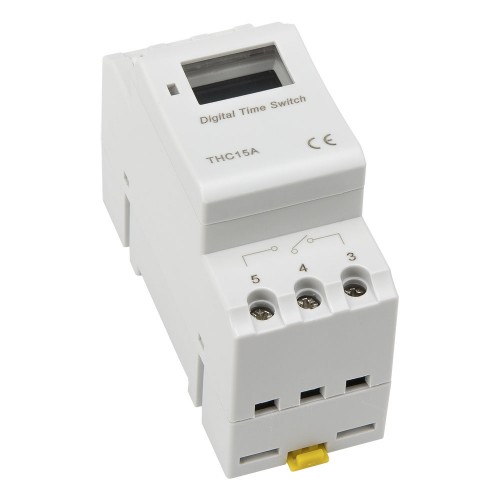

THC15A series 16A digital time switches weekly programmable electronic timers
Illustrated submodels
Mouse over to zoom in
Price: US $4.19 / piece
Model number: THC15A-220VAC
Product name: Time switch
Product description
▇ Model number and contact rating
| Model number | Contact rating | Online store: |
| THC15A | 16A@250VAC | Visiting... |
▇ THC15A time switch model number legend
THC15A
Parent Model Number
▇ General
| Model number | THC15A |
| Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc |
| Power consumption | 7.5VA max |
| Error correction | 2s/days (25℃) |
| Setting method | Touch switch |
| Indication method | LCD |
| Power reserve | 60 days |
| ON/OFF operation | 16 ON/OFF (day/week) |
| External dimensions | 86x36x65 mm |
| Mechanical life | 1x107 |
| Electrical life | 1x105 |
| Operating temperature | -10 to 40 ℃ |
| Operating humidity | 35-85% RH max, non-condensing |
| Alias name | THC15A electronic timer |
▇ THC15A time switch submodels
| No | Model Number | Supply Voltage | MOQ | Unit Price |
| 1 | THC15A-220VAC | 220VAC | 1 | US $4.19 |
| 2 | THC15A-110VAC | 110VAC | 1 | US $4.19 |
| 3 | THC15A-24V | 24VAC/DC | 1 | US $4.19 |
| 4 | THC15A-12V | 12VAC/DC | 1 | US $4.19 |
