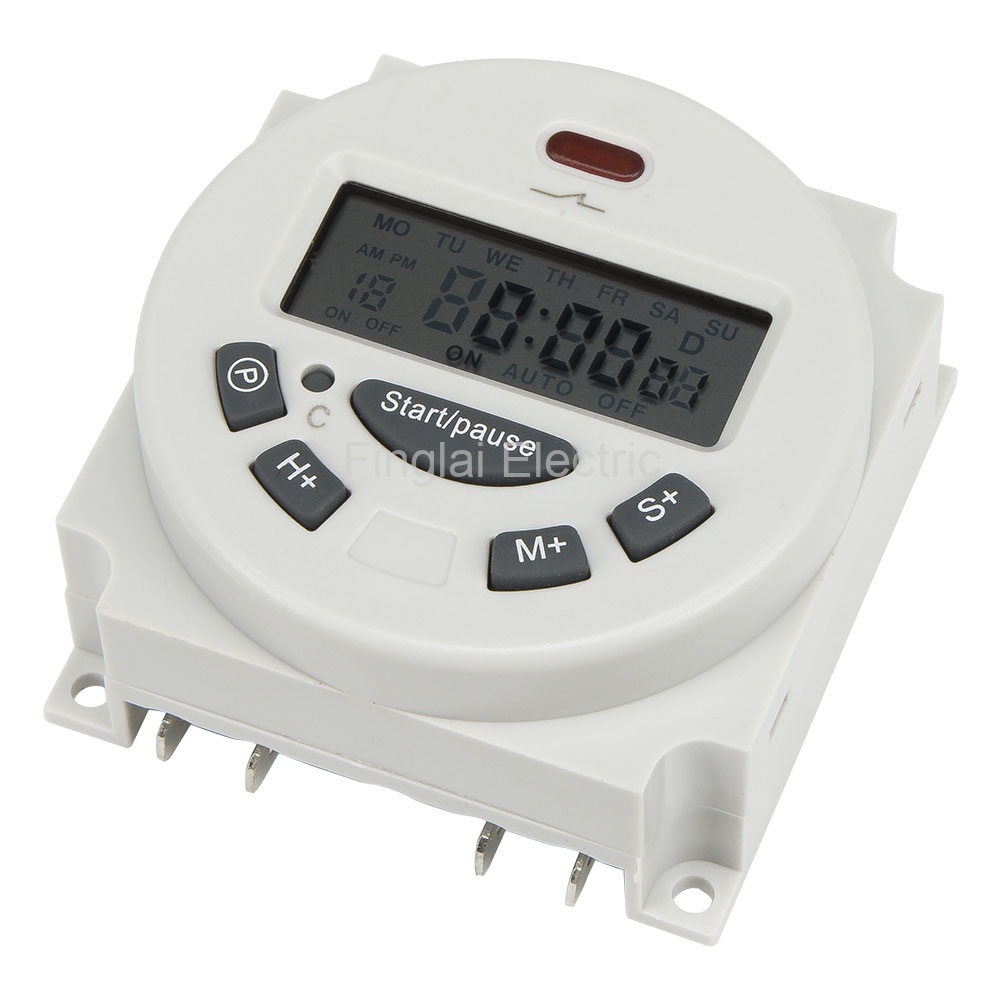

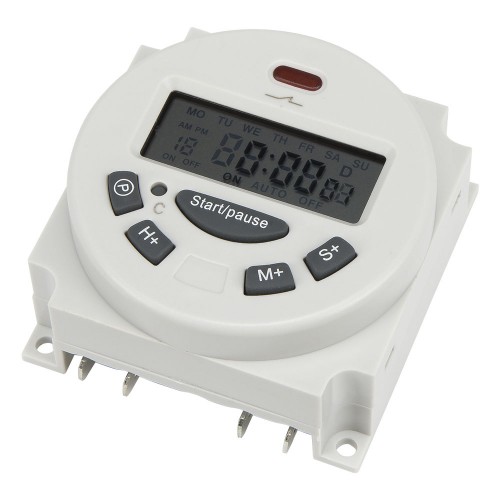

L702 series 16A infinite loop digital time switch
Main child models
Price: US $6.46 / piece
Product name: Time switch
Product description
▇ Model number and contact rating
Model number | Contact rating | Online store: |
L702 | 16A@250VAC | Visiting... |
▇ L702 time switch model number legend
L702
Parent Model Number
▇ General
Model number | L702 |
Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vdc/ac, 24Vdc/ac |
Power consumption | 2W max |
Error correction | 1s/days (25℃) |
Setting method | Touch switch |
Indication method | LCD |
Time range | 1s to 99h59min59s |
Power reserve | 60 days |
Inner battery | 1.2V40Ma (Rechargeable) |
ON/OFF operation | 1 ON/OFF |
Matched accessories | Terminal wires, Mounting panel |
External dimensions | 60x60x32 mm |
Mechanical life | 1x107 |
Electrical life | 1x107 |
Operating temperature | -10 to 50 ℃ |
Operating humidity | 35-85% RH max, non-condensing |
Alias name | CN102A electronic timer |
▇ L702 time switch child models
No | Model Number | Supply Voltage | MOQ | Unit Price |
1 | L702-220VAC | 220VAC | 1 | US $6.46 |
2 | L702-110VAC | 110VAC | 1 | US $6.46 |
3 | L702-24V | 24VAC/DC | 1 | US $6.46 |
4 | L702-12V | 12VAC/DC | 1 | US $6.46 |
