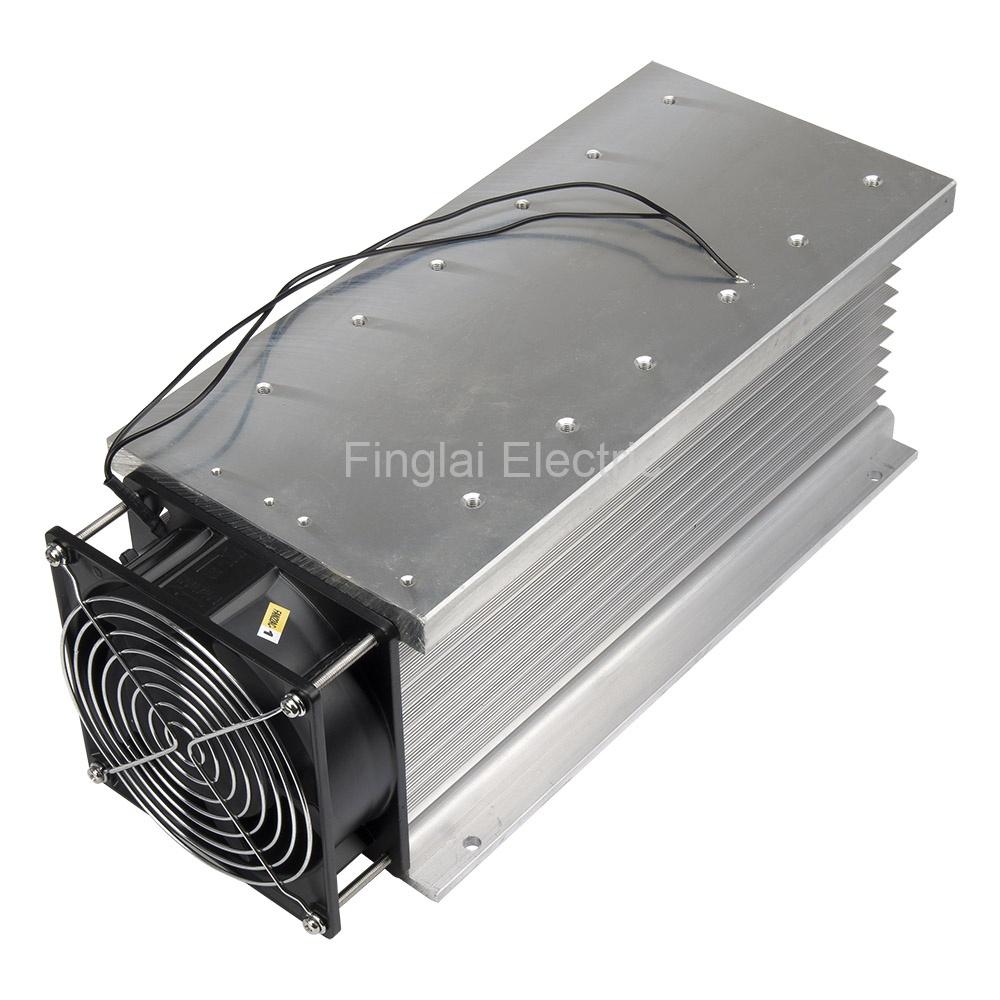

FHSY02 white 300x141x135mm MTC IGBT heat sink radiator with 220VAC ball bearing fan and protective cover
Product features
Mouse over to zoom in
FHSY02 white 300x141x135mm MTC IGBT heat sink radiator with 220VAC ball bearing fan and protective cover
Price: US $43.96 / piece
Model number: FHSY02F-300W2-220VAC
Product name: Fan cooled heat sink
Deliver to:
Shipping:
US $234.82via
Estimated Delivery Time: 10-17 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $278.78
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Shape | With fan | Length | Color | Matched module | Online store: |
| FHSY02-200 | Y type | No | 200mm | White | US $25.88/ pieceOrder (1) | |
| FHSY02-300 | Y type | No | 300mm | White | 3pcs Less than 400A three phase SSR | US $39.36/ pieceOrder (1) |
| FHSY02F-300 | Y type | Yes | 300mm | White | 3pcs Less than 400A three phase SSR | Visiting... |
▇ FHSY02F-300 fan cooled heat sink model number legend
FHSY02F-300
Parent Model Number
▇ General
| Model number | FHSY02 series |
| Sectional dimensions | 141x135 mm |
| Matched axial flow fan | 12038 oil-retaining bearing axial flow fan :fit to intermittent work, smaller noise at same speed. 12038 dual ball bearing axial flow fan :fit to 24 hours continuous work, bigger noise at same speed. |
| Mounting screw with fan | FS01-4-45 |
| Mounting screw with SSR | FS01-4-8 |
▇ FHSY02F-300 fan cooled heat sink submodels
| No | Model Number | Color | Fan Bearing | Fan Voltage | MOQ | Unit Price | Related Product |
| 1 | FHSY02F-300W1-220VAC | White | Oil-retaining bearing | 220VAC | 1 | US $43.29 | Order |
| 2 | FHSY02F-300W2-220VAC | White | Ball bearing | 220VAC | 1 | US $43.96 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 9kg
Package size: 35 x 19 x 23 cm
