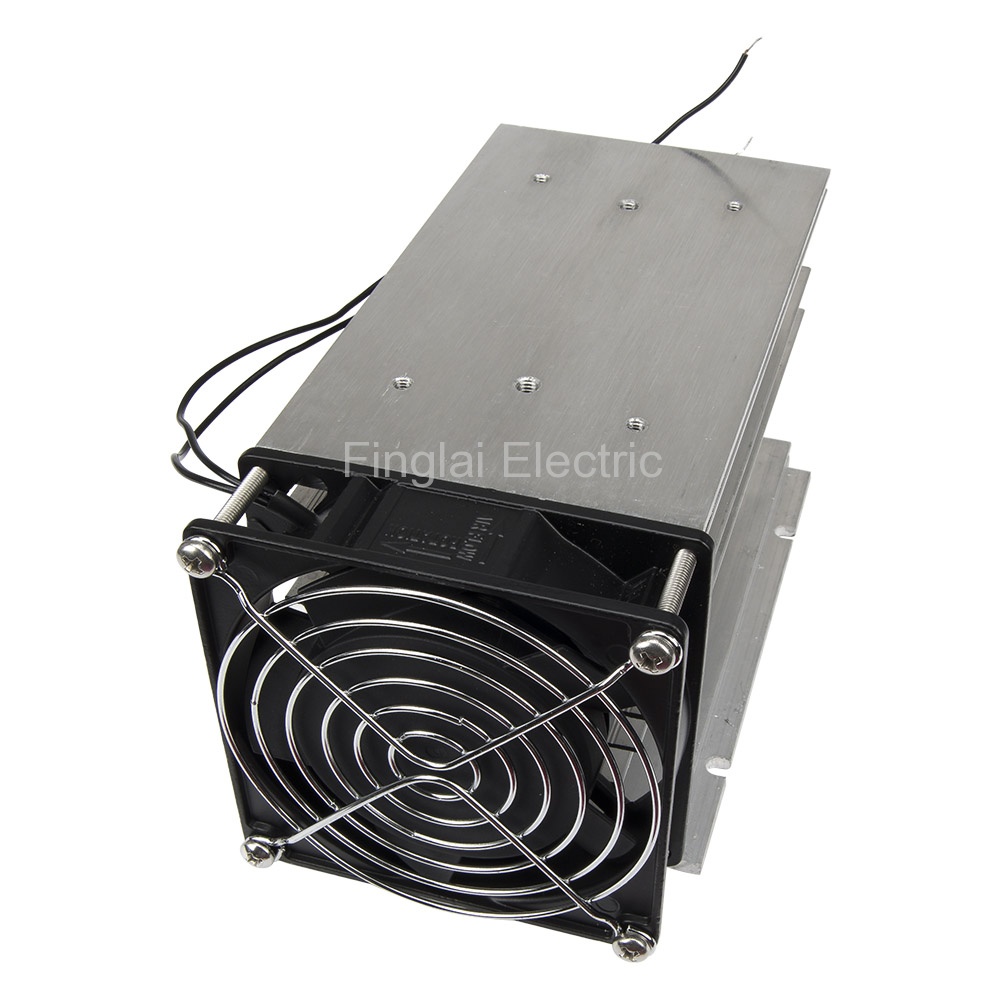

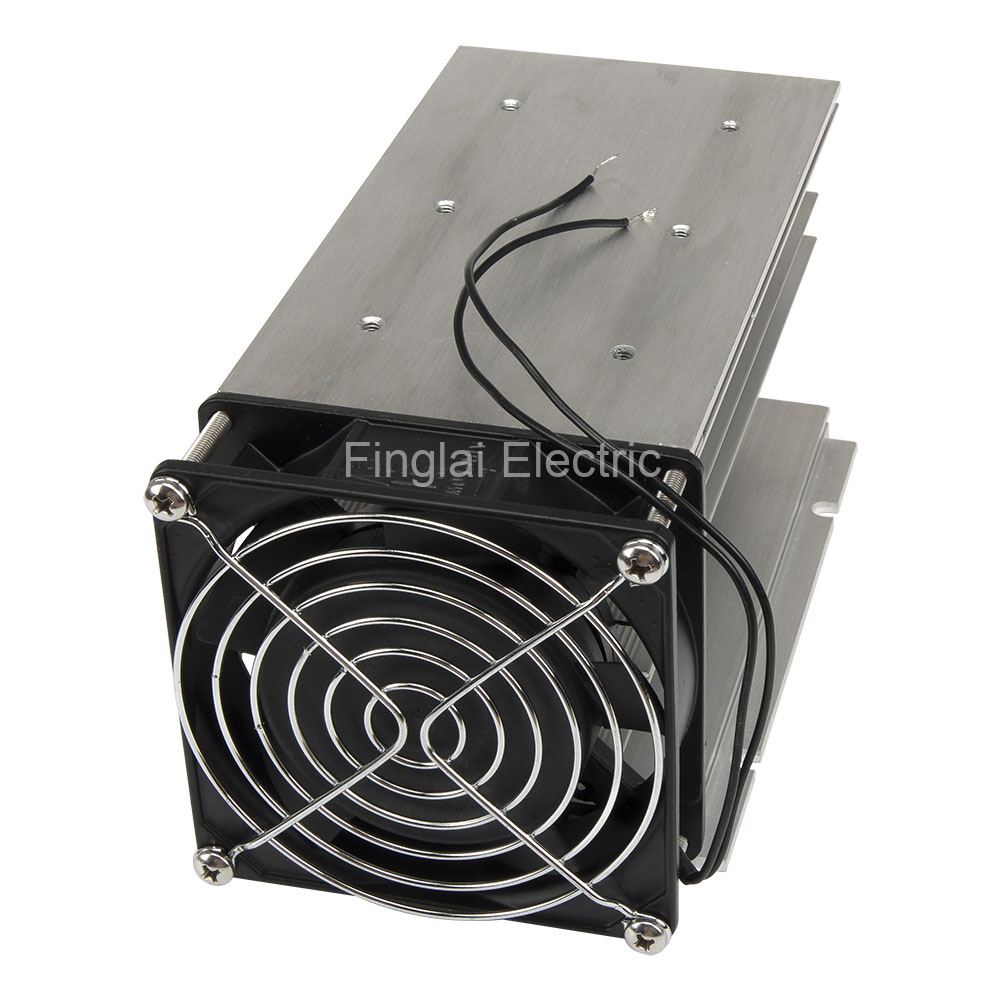

FHSI02F-150 series 150*100*95mm three phase solid state relay heat sinks SSR radiators with fan and protective cover
Main child models
Mouse over to zoom in
Price: US $12.89 / piece
Model number: FHSI02F-150W1-110VAC
Product name: Fan cooled heat sink
Product description
▇ Model number and parameters
| Model number | Same model | Shape | With fan | Length | Color | Matched module | Online store: |
| FHSI02-50 | FHS-S60 | I type | No | 50mm | White, Black | Less than 60A single phase SSR | US $2.47 - 2.69/ pieceOrder (2) |
| FHSI02-150 | FHS-T100 | I type | No | 150mm | White, Black | Less than 100A three phase SSR | US $8.62/ pieceOrder (1) |
| FHSI02F-150 | FHS-T100-F | I type | Yes | 150mm | White, Black | Less than 100A three phase SSR | Visiting... |
| FHSI02-180 | FHS-T120 | I type | No | 180mm | White, Black | Less than 120A three phase SSR | US $10.2/ pieceOrder (1) |
| FHSI02F-180 | FHS-T120-F | I type | Yes | 180mm | White, Black | Less than 120A three phase SSR | US $13.37 - 14.27/ pieceOrder (2) |
▇ FHSI02F-150 fan cooled heat sink model number legend
FHSI02F-150
Parent Model Number
▇ General
| Model number | FHSI02 |
| Sectional dimensions | 100(85)x95 mm |
| Matched axial flow fan | 220VAC 9225 oil-retaining bearing axial flow fan :fit to intermittent work, smaller noise at same speed. 220VAC 9225 dual ball bearing axial flow fan :fit to 24 hours continuous work, bigger noise at same speed. |
| Mounting screw with fan | FS01-4-40 |
| Mounting screw with SSR | FS01-4-8 |
▇ FHSI02F-150 fan cooled heat sink child models
| No | Model Number | Color | Fan Bearing | Fan Voltage | MOQ | Unit Price |
| 1 | FHSI02F-150W1-110VAC | White | Oil-retaining bearing | 110VAC | 1 | US $12.89 |
| 2 | FHSI02F-150W1-220VAC | White | Oil-retaining bearing | 220VAC | 1 | US $11.8 |
| 3 | FHSI02F-150W2-110VAC | White | Ball bearing | 110VAC | 1 | US $14.01 |
| 4 | FHSI02F-150W2-220VAC | White | Ball bearing | 220VAC | 1 | US $12.7 |
