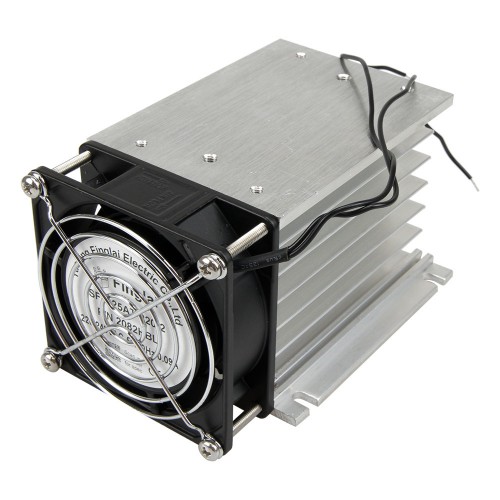

FHSH01F-110 white 110*100*80mm three phase solid state relay SSR aluminum heat sink SSR radiator with 220VAC ball bearing fan and protective cover
Product features
Mouse over to zoom in
FHSH01F-110 white 110*100*80mm three phase solid state relay SSR aluminum heat sink SSR radiator with 220VAC ball bearing fan and protective cover
Price: US $8.43 / piece
Model number: FHSH01F-110W2-220VAC
Product name: Fan cooled heat sink
Fan voltage:
220VACDeliver to:
Shipping:
US $27.05via
Estimated Delivery Time: 12-17 days
Total price:US $35.48
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Shape | With fan | Length | Color | Matched module | Online store: |
| FHSH01-110 | H type | No | 110mm | White, Black | Less than 60A three phase SSR | US $3.99 - 4.19/ pieceOrder (2) |
| FHSH01F-110 | H type | Yes | 110mm | White, Black | Less than 60A three phase SSR | Visiting... |
| FHSH01-150 | H type | No | 150mm | White, Black | Less than 80A three phase SSR | US $4.93 - 5.36/ pieceOrder (2) |
| FHSH01F-150 | H type | Yes | 150mm | White, Black | Less than 80A three phase SSR | US $8.1 - 9.67/ pieceOrder (4) |
| FHSH01-200 | H type | No | 200mm | White | Can install 4pcs single phase SSR | US $7.38/ pieceOrder (1) |
| FHSH01-300 | H type | No | 300mm | White | Can install 6pcs single phase SSR | US $10.3/ pieceOrder (1) |
| FHSH01-450 | H type | No | 450mm | White | Can install 9pcs single phase SSR | US $15.66/ pieceOrder (1) |
| FHSH01-1000 | H type | No | 1000mm | White | US $31.97/ pieceOrder (1) |
▇ FHSH01F-110 fan cooled heat sink model number legend
FHSH01F-110
Parent Model Number
▇ General
| Model number | FHS-T60 series |
| Sectional dimensions | 100x80 mm |
| Matched axial flow fan | 220VAC 8025 oil-retaining bearing axial flow fan: fit to intermittent work, smaller noise at same speed. 220VAC 8025 dual ball bearing axial flow fan: fit to 24 hours continuous work, bigger noise at same speed. |
| Mounting screw with fan | FS01-4-35 |
| Mounting screw with SSR | FS01-4-8 |
▇ FHSH01F-110 fan cooled heat sink child models
| No | Model Number | Color | Fan Bearing | Fan Voltage | MOQ | Unit Price | Related Product |
| 1 | FHSH01F-110W1-220VAC | White | Oil-retaining bearing | 220VAC | 1 | US $6.82 | Order |
| 2 | FHSH01F-110W2-220VAC | White | Ball bearing | 220VAC | 1 | US $8.43 | Visiting... |
| 3 | FHSH01F-110B1-220VAC | Black | Oil-retaining bearing | 220VAC | 1 | US $7.04 | Order |
| 4 | FHSH01F-110B2-220VAC | Black | Ball bearing | 220VAC | 1 | US $8.66 | Order |
Packaging Details
Product quantity: 1pc
Package weight: 1kg
Package size: 15 x 15 x 20 cm
