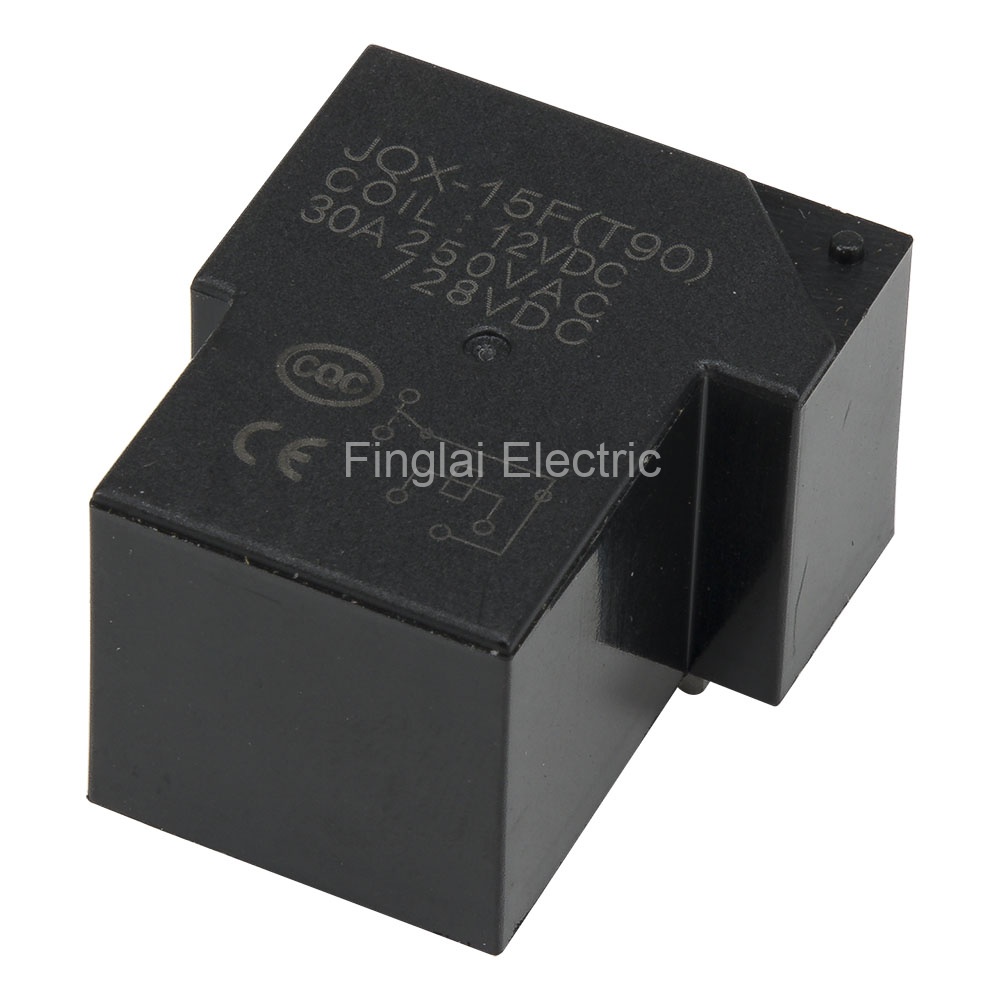

T90 DC 12V 6 pins SPDT PCB relay JQX-15F electromagnetic relay
Product features
Mouse over to zoom in
T90 DC 12V 6 pins SPDT PCB relay JQX-15F electromagnetic relay
Price: US $0.59 / piece
Model number: T90-1C-12VDC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $11.37via
Estimated Delivery Time: 9-15 days
Total price:US $17.27
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
| Model number | Same model | Type | Remark | Online store:
|
| T90-1C | JQX-15F | Standard | SPDT | Visiting... |
▇ T90-1C electromagnetic relay model number legend
▇ General
| Model number |
T90 |
| Contact material |
Silver alloy |
| Contact form |
SPST-NO, SPST-NC, SPDT |
| Contact rating |
30A @28Vdc/240Vac |
| Rated coil power |
0.9Wdc |
| Rated coil voltage |
DC: 3, 5, 6, 9, 12, 18,24, 48V |
| Dielectric strength |
2,500Vac, 50/60 Hz for 1 min between coil and contacts
1,000Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage |
DC types: 75% max; |
| Drop-out voltage |
DC types: 10% min; |
| Operation voltage |
110% max |
| Contact resistance |
50mΩ max |
| Mounting |
Weld on PCB |
| Mechanical life |
1x107 operations min |
| Electrical life |
1x105 operations min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-40 to 70 ℃ |
| Operating humidity |
35 to 85% RH, no condensation |
| External dimensions |
32.5x27x20.1 mm |
| Alias name |
T90 PCB relay, electromagnetic relay |
▇ T90-1C electromagnetic relay child models
| No |
Model Number |
Coil Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
T90-1C-12VDC |
12VDC |
10 |
US $0.59 |
Visiting... |
T90 PCB relay drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.4kg
Package size: 13 x 8 x 9 cm
