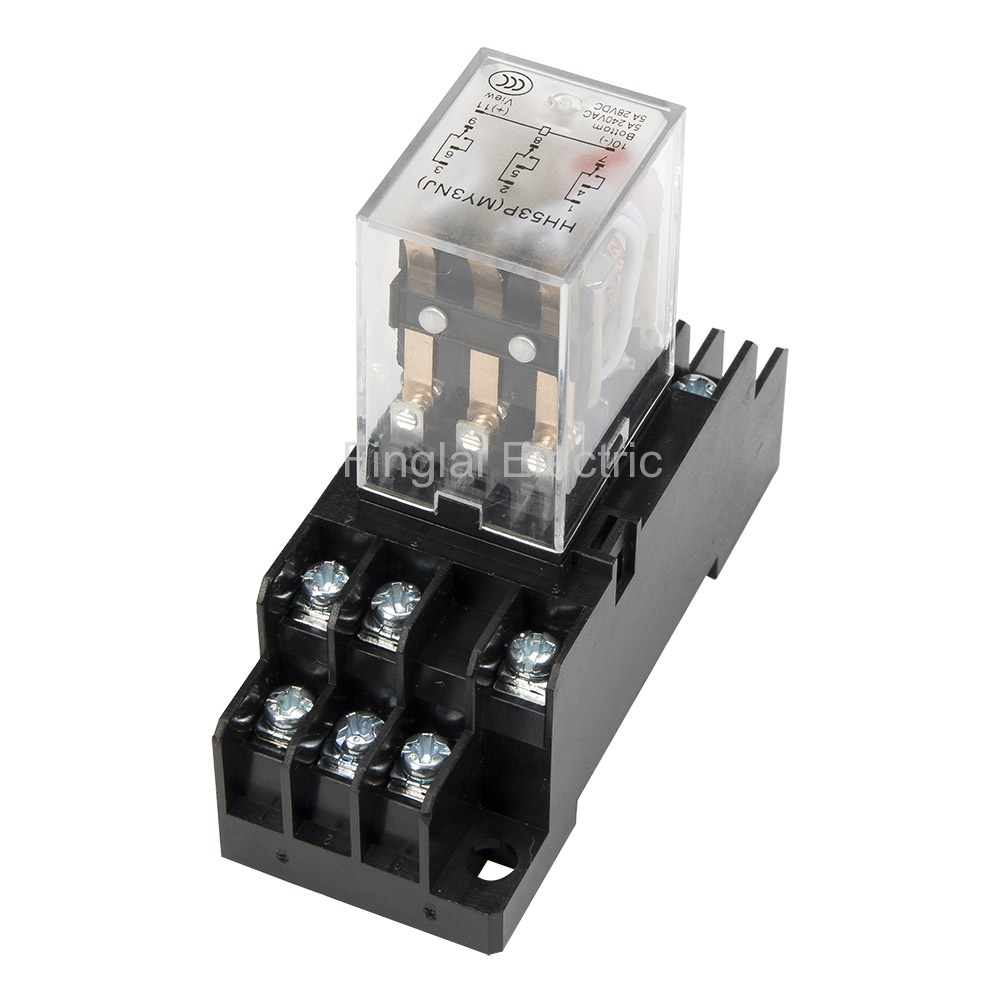

HH53PL AC 220V LED indicator electromagnetic relay with socket base HH53P MY3 series 220VAC HH53P-L MY3NJ
Product features
Mouse over to zoom in
HH53PL AC 220V LED indicator electromagnetic relay with socket base HH53P MY3 series 220VAC HH53P-L MY3NJ
Price: US $1.1 / piece
Model number: HH53PL-S220VAC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $22.19via
Estimated Delivery Time: 9-15 days
Total price:US $33.19
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
Model number | Same model | Type | Online store: |
HH53P | MY3J | Standard | |
HH53PL | HH53P-L, MY3NJ | With LED indicator | Visiting... |
▇ HH53PL electromagnetic relay model number legend
HH53PL
Parent Model Number
▇ General
Model number | HH53P series |
Contact material | Silver alloy |
Contact form | 3PST-NO, 3PST-NC, 3PDT |
Contact rating | 5A@28Vdc/240Vac |
Rated coil power | 1.2Wac, 0.9Wdc |
Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,000Vac, 50/60 Hz for 1 min between opening contacts |
Pick-up voltage | DC types: 75% max; AC types: 80% max |
Drop-out voltage | DC types: 10% min; AC types: 30% min |
Operation voltage | 110% max |
Contact resistance | 50mΩ max |
Termination | 11 pins |
Mounting | Quick connect |
Matched socket | PYF11A, PY11 |
Matched relay pothook | FRSA01, PYC-A1 |
Mechanical life | 1x107 operations min |
Electrical life | 1x105 operations min |
Insulation resistance | 100MΩ min. at 500 VDC |
Operating temperature | -30 to 55 ℃ (-22 to 131 ℉) |
Operating humidity | 35 to 85% RH, no condensation |
External dimensions | 27.3x21x35.2 mm |
PCS/Box | 10 |
Alias name | HH53P series power relay, electric relay, electrical relay |
▇ HH53PL electromagnetic relay child models
No | Model Number | Socket | Coil Voltage | MOQ | Unit Price | Related Product |
1 | HH53PL-N220VAC | Without socket | 220VAC | 1 | US $0.88 | Order |
2 | HH53PL-N110VAC | Without socket | 110VAC | 1 | US $1.05 | Order |
3 | HH53PL-N24VDC | Without socket | 24VDC | 1 | US $0.88 | Order |
4 | HH53PL-N12VDC | Without socket | 12VDC | 1 | US $0.88 | Order |
5 | HH53PL-S220VAC | With socket | 220VAC | 10 | US $1.1 | Visiting... Unfold |
HH53P(MY3) series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 10pcs
Package weight: 1kg
Package size: 10 x 10 x 10 cm
