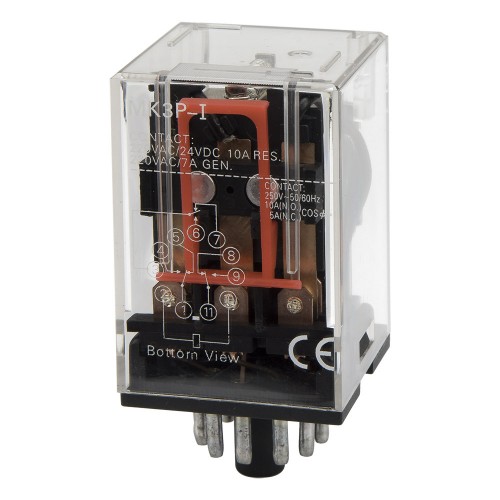

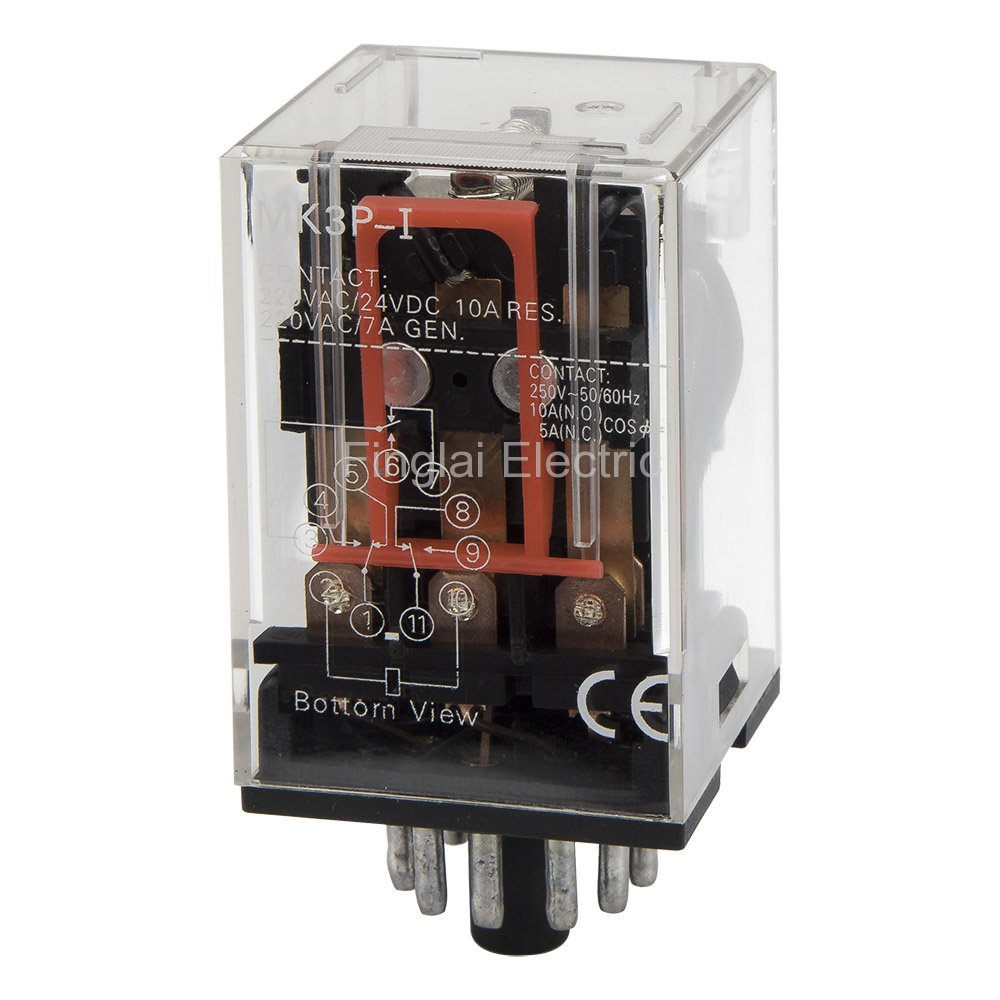

MK3P-I series 11 pins electromagnetic relays
Main child models
Product description
▇ Model number and type
| Model number | Type | Online store: |
| MK3P-I | Standard | Visiting... |
| MK3P-INJ | With LED indicator |
▇ MK3P-I electromagnetic relay model number legend
MK3P-I
Parent Model Number
▇ General
| Model number | MK3P series |
| Contact material | Silver alloy |
| Contact form | 3PST-NO, 3PST-NC, 3PDT |
| Contact rating | 10A@28Vdc/240Vac |
| Rated coil power | 3.5Wac, 2Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 11 pins |
| Mounting | Quick connect |
| Matched socket | PF113A |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -25 to 55 ℃ |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 34.5x34.5x53 mm |
| Alias name | MK3P series power relay, electric relay, electrical relay |
▇ MK3P-I electromagnetic relay child models
| No | Model Number | Coil Voltage | MOQ | Unit Price |
| 1 | MK3P-I-380VAC | 380VAC | 1 | US $1.8 |
| 2 | MK3P-I-220VAC | 220VAC | 1 | US $1.52 |
| 3 | MK3P-I-110VAC | 110VAC | 1 | US $1.8 |
| 4 | MK3P-I-24VAC | 24VAC | 1 | US $1.8 |
| 5 | MK3P-I-24VDC | 24VDC | 1 | US $1.8 |
| 6 | MK3P-I-6VDC | 6VDC | 1 | US $1.8 |
