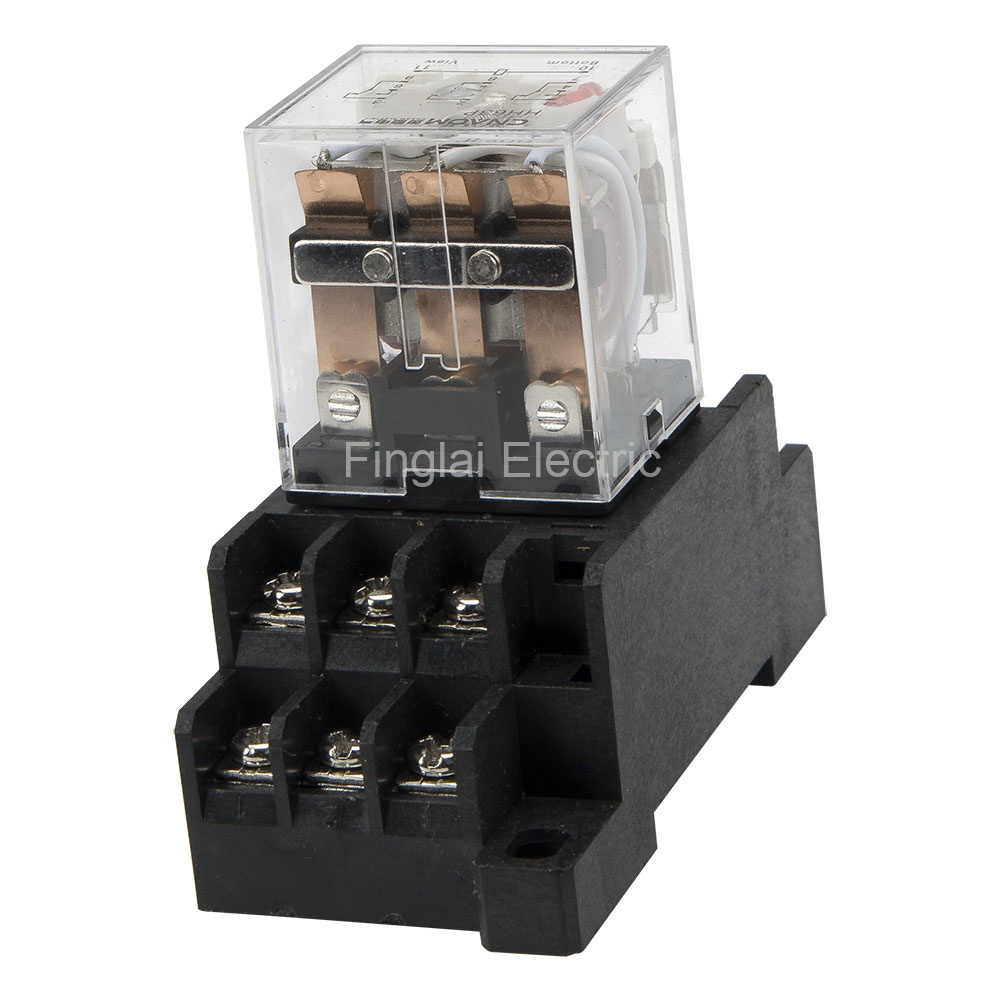

LY3NJ AC 220V LED indicator electromagnetic relay with socket base LY3 series 220VAC HH63P
10 sold
Product features
Mouse over to zoom in
LY3NJ AC 220V LED indicator electromagnetic relay with socket base LY3 series 220VAC HH63P
Price: US $2.18 / piece
Model number: LY3NJ-S220VAC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $9.27via
Estimated Delivery Time: 9-17 days
Total price:US $31.07
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
| Model number | Same model | Type | Online store: |
| LY3J | HH63P | Standard | |
| LY3NJ | HH63PL, HH63P-L | With LED indicator | Visiting... |
▇ LY3NJ electromagnetic relay model number legend
LY3NJ
Parent Model Number
▇ General
| Model number | LY3 series |
| Contact material | Silver alloy; Copper |
| Contact form | 3PST-NO, 3PST-NC, 3PDT |
| Contact rating | 10A@28Vdc/240Vac< |
| Rated coil power | 2Wac, 1.4Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 11 pins |
| Mounting | Quick connect |
| Matched socket | PTF11A, PT11 |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 27.3x21x35.2 mm |
| Alias name | LY3 series power relay, electric relay, electrical relay |
▇ LY3NJ electromagnetic relay child models
| No | Model Number | Socket | Coil Voltage | MOQ | Unit Price | Related Product |
| 1 | LY3NJ-N220VAC | Without socket | 220VAC | 1 | US $1.88 | Order |
| 2 | LY3NJ-N24VDC | Without socket | 24VDC | 1 | US $1.88 | Order |
| 3 | LY3NJ-S220VAC | With socket | 220VAC | 10 | US $2.18 | Visiting... |
| 4 | LY3NJ-S24VDC | With socket | 24VDC | 10 | US $2.18 | Order |
LY3 series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 10pcs
Package weight: 0.17kg
Package size: 10 x 10 x 10 cm
