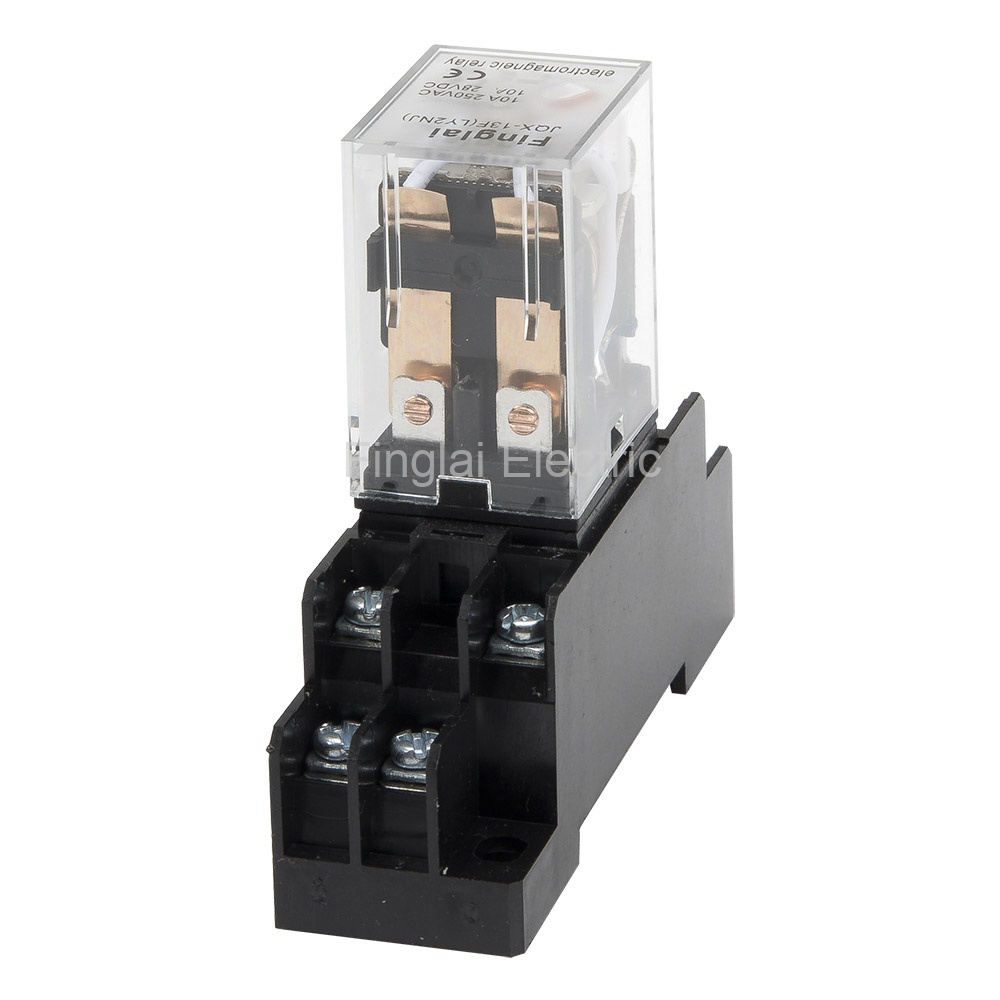

JQX-13FL AC 110V LED indicator electromagnetic relay with socket base HH62P LY2 series 110VAC LY2NJ
Product features
Mouse over to zoom in
JQX-13FL AC 110V LED indicator electromagnetic relay with socket base HH62P LY2 series 110VAC LY2NJ
Price: US $1.22 / piece
Model number: JQX-13FL-S110VAC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $30.46via
Estimated Delivery Time: 9-17 days
Total price:US $42.66
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
| Model number | Same model | Type | Online store:
|
| JQX-13F | LY2, HH62P | Standard | |
| JQX-13FL | LY2NJ, HH62PL, HH62P-L | With LED indicator | Visiting... |
▇ JQX-13FL electromagnetic relay model number legend
▇ General
| Model number |
JQX-13F series |
| Contact material |
Silver alloy |
| Contact form |
DPST-NO, DPST-NC, DPDT |
| Contact rating |
10A@28Vdc/240Vac |
| Rated coil power |
1.2Wac, 0.9Wdc |
| Rated coil voltage |
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength |
1,500Vac, 50/60 Hz for 1 min between coil and contacts
1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage |
DC types: 75% max; AC types: 80% max |
| Drop-out voltage |
DC types: 10% min; AC types: 30% min |
| Operation voltage |
110% max |
| Contact resistance |
50mΩ max |
| Termination |
8 pins |
| Mounting |
Quick connect |
| Matched socket |
PTF08A, PT08 |
| Mechanical life |
1x107 operations min |
| Electrical life |
1x105 operations min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity |
35 to 85% RH, no condensation |
| External dimensions |
27.3x21x35.2 mm |
| Alias name |
LY2 series power relay, electric relay, electrical relay |
▇ JQX-13FL electromagnetic relay child models
| No |
Model Number |
Socket |
Coil Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
JQX-13FL-N220VAC |
Without socket |
220VAC |
1 |
US $0.79 |
Order |
| 2 |
JQX-13FL-N110VAC |
Without socket |
110VAC |
1 |
US $0.92 |
Order |
| 3 |
JQX-13FL-N24VDC |
Without socket |
24VDC |
1 |
US $0.92 |
Order |
| 4 |
JQX-13FL-N12VDC |
Without socket |
12VDC |
1 |
US $0.92 |
Order |
| 5 |
JQX-13FL-N6VDC |
Without socket |
6VDC |
1 |
US $0.92 |
Order Unfold |
| 6 |
JQX-13FL-S220VAC |
With socket |
220VAC |
10 |
US $1.09 |
Order |
| 7 |
JQX-13FL-S110VAC |
With socket |
110VAC |
10 |
US $1.22 |
Visiting... |
| 8 |
JQX-13FL-S24VDC |
With socket |
24VDC |
10 |
US $1.09 |
Order |
| 9 |
JQX-13FL-S12VDC |
With socket |
12VDC |
10 |
US $1.22 |
Order |
| 10 |
JQX-13FL-S6VDC |
With socket |
6VDC |
10 |
US $1.22 |
Order |
JQX-13F series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 10pcs
Package weight: 0.9kg
Package size: 10 x 10 x 10 cm
