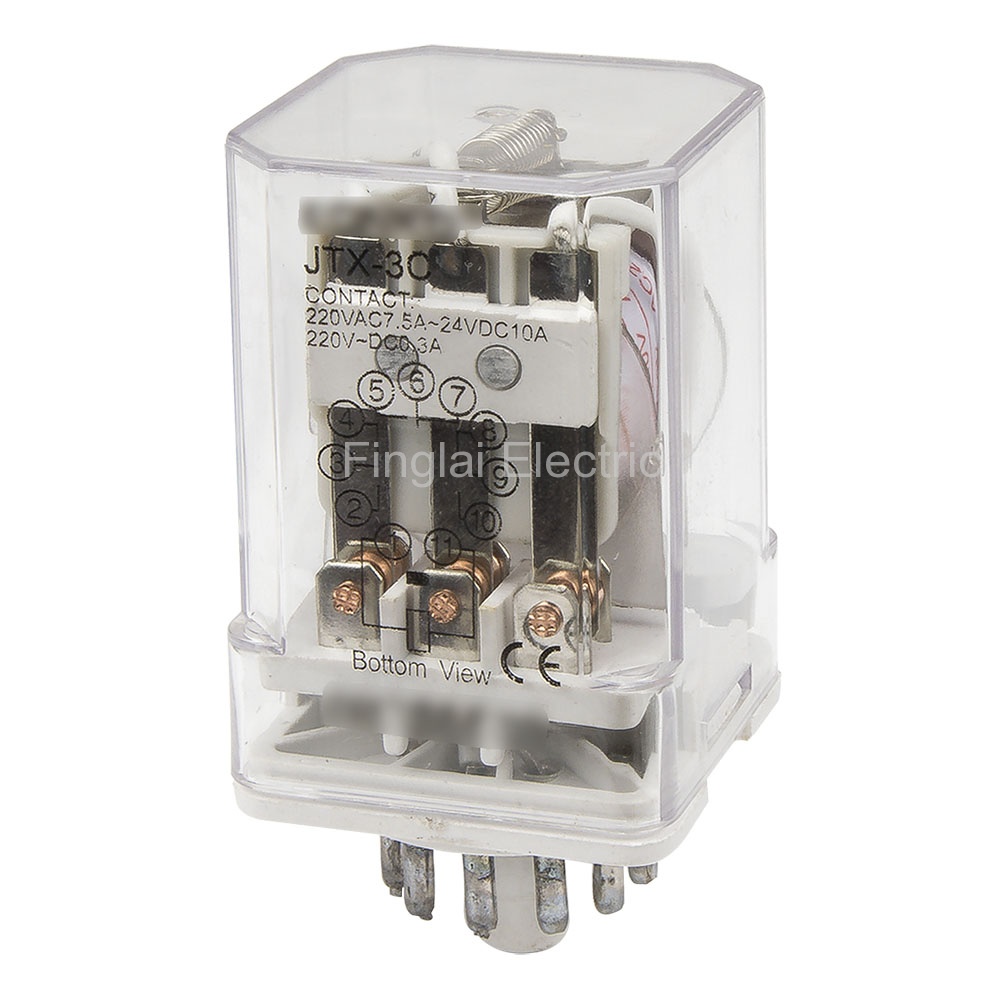

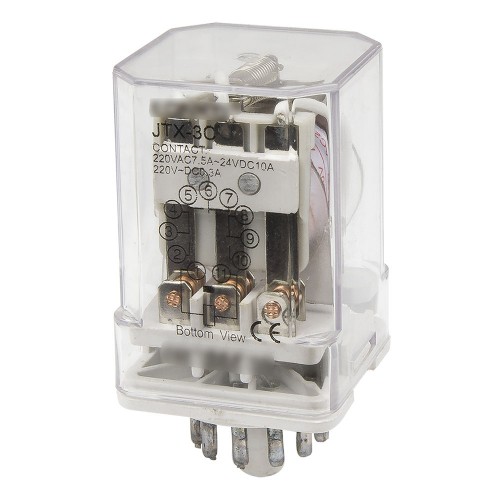

JTX-3C series electromagnetic relays
Main child models
Product description
▇ Model number and type
| Model number | Type | Online store: |
| JTX-3C | Standard | Visiting... |
▇ JTX-3C electromagnetic relay model number legend
JTX-3C
Parent Model Number
▇ General
| Model number | JTX-3C |
| Contact material | Silver alloy |
| Contact form | 3PST-NO, 3PST-NC, 3PDT |
| Contact rating | 10A@28Vdc/240Vac |
| Rated coil power | 2.5Wac, 1.5Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 11 pins |
| Mounting | Quick connect |
| Matched socket | PF113A |
| Mechanical life | 1x106 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 34.5x34.5x53 mm |
| Alias name | JTX-3C/JQX-10F-3Z/JTX-3Z power relay, electric relay, electrical relay |
▇ JTX-3C electromagnetic relay child models
| No | Model Number | Coil Voltage | MOQ | Unit Price |
| 1 | JTX-3C-380VAC | 380VAC | 1 | US $1.92 |
| 2 | JTX-3C-220VAC | 220VAC | 1 | US $1.92 |
| 3 | JTX-3C-110VAC | 110VAC | 1 | US $1.92 |
| 4 | JTX-3C-24VAC | 24VAC | 1 | US $1.92 |
| 5 | JTX-3C-24VDC | 24VDC | 1 | US $1.92 |
| 6 | JTX-3C-12VDC | 12VDC | 1 | US $1.92 |
| 7 | JTX-3C-6VDC | 6VDC | 1 | US $1.92 |
