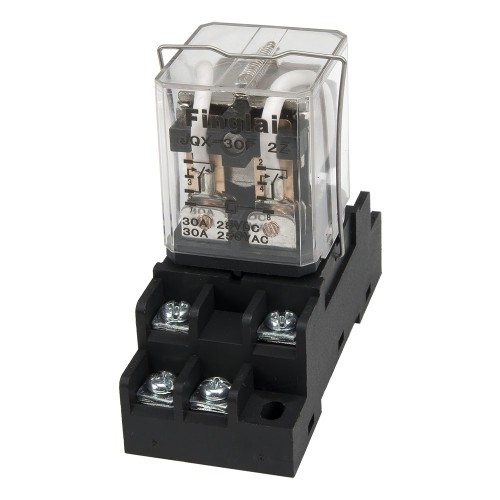

JQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket base

4 sold
Product features
JQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket base
Mouse over to zoom in
JQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket baseJQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket base
JQX-30F AC 110V 30A DPDT silver alloy contact high power relay with socket base
Price: US $5.35 / piece
Model number: JQX-30F-2Z-S110VAC
Product name: Electromagnetic relay
Socket:
Without socket
US $4.31With socket
US $5.35
Coil voltage:
220VAC
US $5.35110VAC
US $5.3524VDC
US $5.3512VDC
US $5.35
Deliver to:
Shipping:
US $9.6via
Estimated Delivery Time: 9-17 days
DDP service: All applicable import duties and taxes are included in total price.
Quantity:
Total price:US $14.95
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and type
Model numberTypeOnline store:
JQX-30F-2ZDPDTVisiting...
▇ JQX-30F-2Z electromagnetic relay model number legend
▇ General
Model number JQX-30F series
Contact material Silver alloy
Contact form DPDT
Contact rating 30A@28Vdc/250Vac
Rated coil voltage AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V
Dielectric strength 2,000Vac, 50/60 Hz for 1 min between coil and contacts
1,200Vac, 50/60 Hz for 1 min between opening contacts
Pick-up voltage DC types: 75% max; AC types: 80% max
Drop-out voltage DC types: 10% min; AC types: 30% min
Operation voltage 110% max
Contact resistance 100mΩ max
Termination 8 pins
Mounting Quick connect
Matched socket FRS01
Mechanical life 1x105 operations min
Electrical life 5x104 operations min
Insulation resistance 100MΩ min. at 500 VDC
Operating temperature -25 to 55 ℃ (-13 to 131 ℉)
Operating humidity 35 to 85% RH, no condensation
External dimensions 32.5x34.5x49.5mm
PCS/Box 10
Alias name JQX-30F series power relay, electric relay, electrical relay
▇ JQX-30F-2Z electromagnetic relay submodels
No Model Number Socket Coil Voltage MOQ Unit Price Related Product
1 JQX-30F-2Z-N220VAC Without socket 220VAC 1 US $4.31 Order
2 JQX-30F-2Z-N110VAC Without socket 110VAC 1 US $4.31 Order
3 JQX-30F-2Z-N24VDC Without socket 24VDC 1 US $4.31 Order
4 JQX-30F-2Z-N12VDC Without socket 12VDC 1 US $4.31 Order
5 JQX-30F-2Z-S220VAC With socket 220VAC 1 US $5.35 Order Unfold
6 JQX-30F-2Z-S110VAC With socket 110VAC 1 US $5.35 Visiting...
7 JQX-30F-2Z-S24VDC With socket 24VDC 1 US $5.35 Order
8 JQX-30F-2Z-S12VDC With socket 12VDC 1 US $5.35 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.21kg
Package size: 13 x 8 x 4.5 cm
