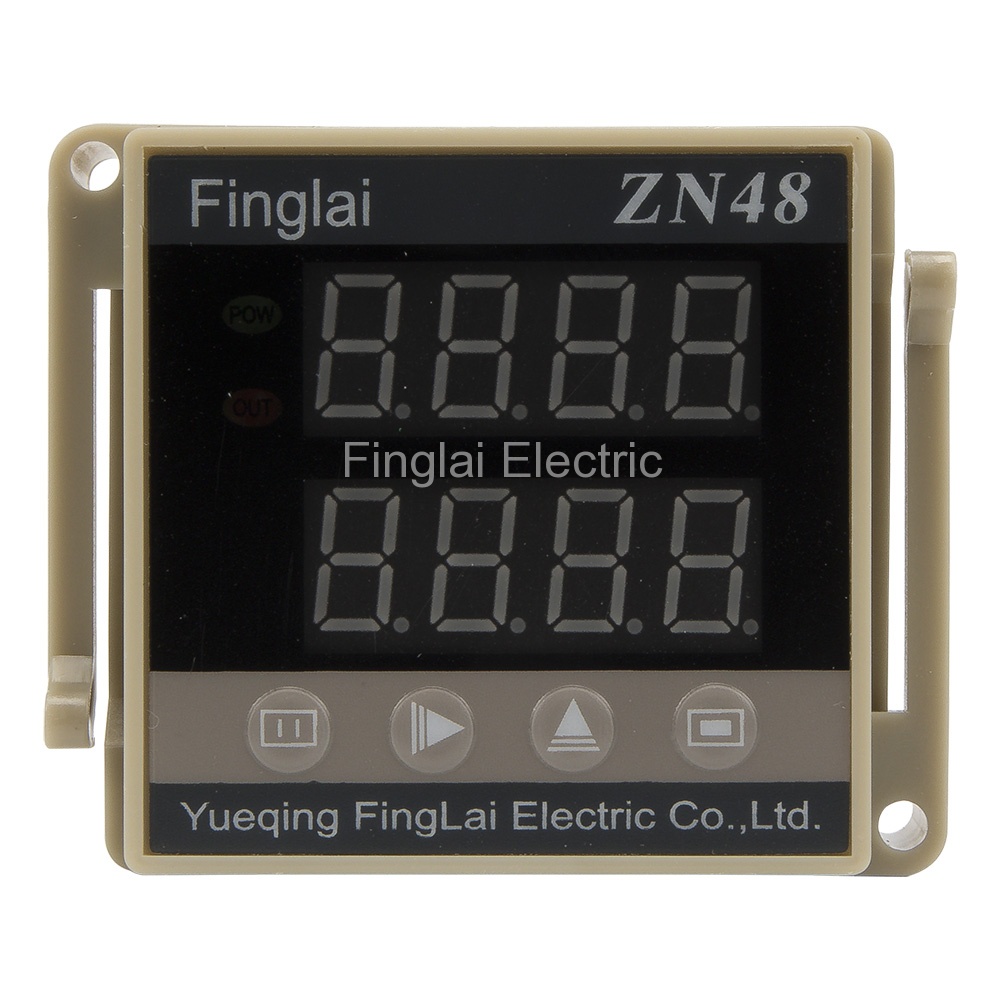

ZN48 AC/DC 12V 48*48mm counter frequency meter tachometer
Product features
Mouse over to zoom in
ZN48 AC/DC 12V 48*48mm counter frequency meter tachometer
Price: US $7.19 / piece
Model number: ZN48-12V
Product name: Counter
Deliver to:
Shipping:
US $9.56via
Estimated Delivery Time: 9-15 days
Total price:US $16.75
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Input signal | External dimensions | Perforate dimensions | Online store: |
| ZN48 | Contact, sensor | 48x48x91mm | 4610x46 10 mm | Visiting... |
| ZN72 | Contact, sensor | 72x72x115 mm | 6810x68 10 mm | US $10.11/ pieceOrder (6) |
▇ ZN48 counter model number legend
ZN48
Parent Model Number
▇ General
| Model number | ZN series |
| Supply voltage | 36, 220, 380VAC 50/60 Hz; 12VAC/DC, 24VAC/DC |
| Operating mode | Single delay (Up): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6 Single delay (Down): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6 Double delay (Up): 9999s/9999min/99min59s/99h59min. out code: 1,2 Double delay (Down): 9999s/9999min/99min59s/99h59min. out code: 1,2 Accumulation (reset immediately): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6 Accumulation (reset after 8s): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6 Frequency: 9999Hz/999.9Hz. out code: 1,3 Rotation: 60-9999RPM. out code: 1,3 Frequency/Rotation: 0-9999. out code: 1,3. multiple: a,b Reversible count: 0-9999. out code: 1,3,5 Reversible count: 0-9999. out code: 1,3,5. multiple: a Reversible count: 0-99999999. out code: 1,3,5 Reversible count: 0-99999999. out code: 1,3,5. multiple: a |
| Output mode | 1. When power on, the counter work, reach or exceed the set value, relay switch on. 2. When power on, the counter don't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on. 3. When power on, the counter work, reach or exceed the set value, relay switch off. 4. When power on, the counter don't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch off. 5. When power on, the counter work, reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again. 6. When power on, the counter don't work work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again. |
| Input Signal | Contact, sensor (NPN type) |
| Max. counting speed | 10KHz |
| Control form | SPDT |
| Contact rating | 5A@250Vac, 7A@24Vdc |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Power consumption | 3W max |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| Counting error | ≤1 |
| Reset time | ≥0.05s |
| Power reset | ≥1s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn |
| Operating temperature | -10 to 50 ℃ |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | ZN series time relay, counting relay, frequency meter, tachometer |
▇ ZN48 counter child models
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 13 x 8 x 9 cm
