JDM9-4 4 digits AC 110V count up digital counter

Product features
Mouse over to zoom in

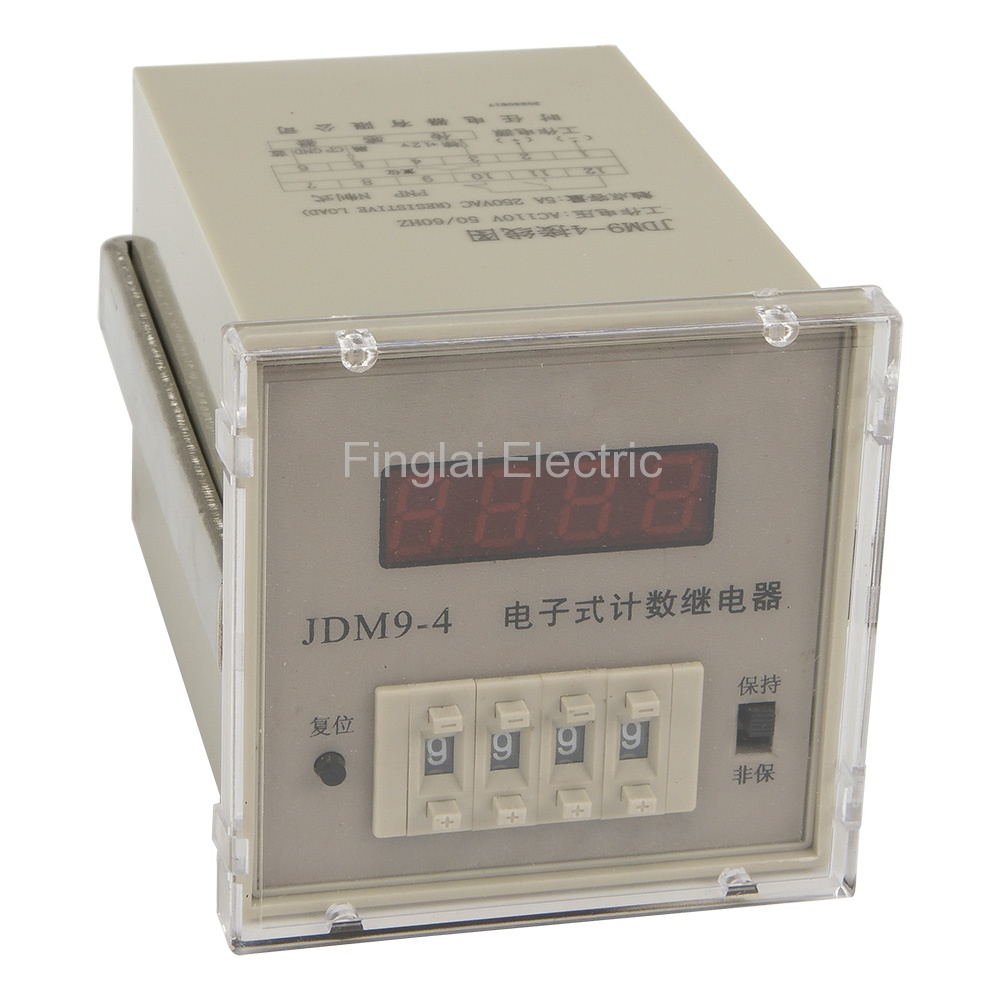

JDM9-4 4 digits AC 110V count up digital counter
Price: US $10.58 / piece
Model number: JDM9-4-110VAC
DatasheetJDM9 series digital counter
Product name: Counter
Deliver to:
Shipping:
US $18.85via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $29.43
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberCounting rangeMagnificationOnline store:
JDM9-41-99991/10/100Visiting...
JDM9-61-9999991/10/100US $10.79/ pieceOrder (5)
▇ JDM9-4 counter model number legend
▇ General
Model number JDM9 series
Supply voltage 12, 24, 36Vdc; 36, 110, 220 or 380 Vac
Operating mode UP counting
Output mode N (Default): When count reach to set value, count stop, relay switch on
C: When count reach to set value, relay switch on, then switch off immediately, count reset to zero, then go on counting
R: When count reach to set value, relay switch on, after a short time, relay switch off, count reset to zero, then go on counting
F: When count reach to set value, count go on, relay switch on
Input Signal Contact,level, sensor
Max. counting speed Contact: 30cps: Level or sensor (default is PNP) signal: 1000 cps (need to be customized)
No-power memory 10 years
Control form SPDT
Contact rating 5A@250Vac, 7A@24Vdc
Mechanical life 1x106
Electrical life 1x105
Power consumption 3VA max
Setting method Dial switch
Indication method 8-segment 4-digital display
External dimensions 78x78x128 mm
Perforate dimensions 7110x71 10 mm
Counting error ≤1
Reset time ≥0.05s
Power reset ≥1s
Dielectric strength 2000Vac, 50/60Hz for 1min
Insulation resistance 100MΩ min. at 500 VDC
Mounting Panel
Matched sensor PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M130 4m Sn
Operating temperature -5 to 45 ℃
Operating humidity 30-85% RH max, non-condensing
Alias name JDM9 series counting relay, counter relay
▇ JDM9-4 counter child models
No Model Number Supply Voltage MOQ Unit Price Related Product
1 JDM9-4-220VAC 220VAC 1 US $10.58 Order
2 JDM9-4-110VAC 110VAC 1 US $10.58 Visiting...
3 JDM9-4-24V 24VAC/DC 1 US $10.58 Order
4 JDM9-4-12V 12VAC/DC 1 US $10.58 Order
5 JDM9-4-380VAC 380VAC 1 US $10.58 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 17.5 x 9.5 x 11.5 cm
