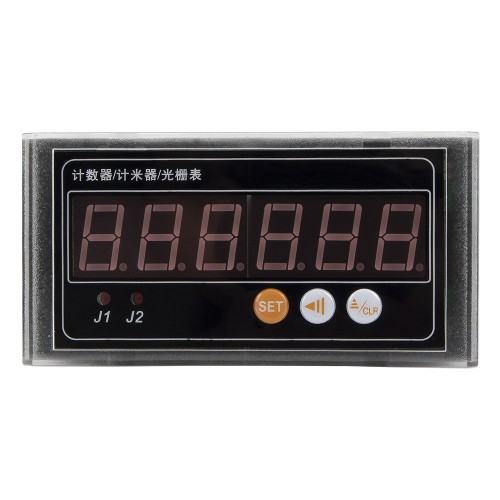

FCT01 AC/DC 85-265V contact level pluse PNP sensor input RS485 3 relays output digital counter meter counter raster meter
Product features
Mouse over to zoom in
FCT01 AC/DC 85-265V contact level pluse PNP sensor input RS485 3 relays output digital counter meter counter raster meter
Price: US $42.87 / piece
Model number:
FCT01-P-RA3Product name: Counter
Deliver to:
Shipping:
US $12.27via
Estimated Delivery Time: 9-15 days
Total price:US $55.14
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Counting range | Magnification | Input signal | External dimensions | Perforate dimensions | Online store:
|
| FCT01 | -199999-999999 | 0.0001-9999 | Contact, level, sensor | 96x48x90mm | 9210x44 10 mm | Visiting... |
▇ FCT01 counter model number legend
▇ General
| Model number |
FCT01 series |
| Supply voltage |
85-265VAC/DC; 12-36VDC |
| Input Signal |
Contact, level pluse(low: -30-0,8V, high: 4-30V), sensor (NPN, PNP type) |
| Max. counting speed |
10KHz |
| Control form |
SPDT |
| Contact rating |
3A@250Vac, 3A@24Vdc (3 relays, can select) |
| Communication Interface |
RS485 interface (Standard Modbus RTU protocol, not include PC software, provide protocol, need you write it yourself) |
| Mechanical life |
1x106 |
| Electrical life |
1x105 |
| Power consumption |
3W max |
| Setting method |
Touch switch |
| Indication method |
8-segment 6-digital display |
| Counting error |
≤1 |
| Reset time |
≥0.05s |
| Power reset |
≥1s |
| Dielectric strength |
2000Vac, 50/60Hz for 1min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-10 to 55 ℃ |
| Operating humidity |
30-85% RH max, non-condensing |
| Alias name |
ZN series time relay, counting relay, counter relay |
▇ FCT01 counter child models
| No |
Model Number |
Supply Voltage |
Sensor Type |
RS485 Interface |
Alarm Relay Quantity |
MOQ |
Unit Price |
Related Product |
| 1 |
FCT01-N-RN |
85-265VAC/DC |
NPN |
With RS485 |
No relay |
1 |
US $32.76 |
Order |
| 2 |
FCT01-N-RA1 |
85-265VAC/DC |
NPN |
With RS485 |
1 relay |
1 |
US $36.13 |
Order |
| 3 |
FCT01-N-RA2 |
85-265VAC/DC |
NPN |
With RS485 |
2 relays |
1 |
US $39.5 |
Order |
| 4 |
FCT01-N-RA3 |
85-265VAC/DC |
NPN |
With RS485 |
3 relays |
1 |
US $42.87 |
Order |
| 5 |
FCT01-N-NN |
85-265VAC/DC |
NPN |
Without RS485 |
No relay |
1 |
US $21.53 |
Order Unfold |
| 6 |
FCT01-N-NA1 |
85-265VAC/DC |
NPN |
Without RS485 |
1 relay |
1 |
US $26.02 |
Order |
| 7 |
FCT01-N-NA2 |
85-265VAC/DC |
NPN |
Without RS485 |
2 relays |
1 |
US $29.39 |
Order |
| 8 |
FCT01-N-NA3 |
85-265VAC/DC |
NPN |
Without RS485 |
3 relays |
1 |
US $32.76 |
Order |
| 9 |
FCT01-P-RN |
85-265VAC/DC |
PNP |
With RS485 |
No relay |
1 |
US $32.76 |
Order |
| 10 |
FCT01-P-RA1 |
85-265VAC/DC |
PNP |
With RS485 |
1 relay |
1 |
US $36.13 |
Order |
| 11 |
FCT01-P-RA2 |
85-265VAC/DC |
PNP |
With RS485 |
2 relays |
1 |
US $39.5 |
Order |
| 12 |
FCT01-P-RA3 |
85-265VAC/DC |
PNP |
With RS485 |
3 relays |
1 |
US $42.87 |
Visiting... |
| 13 |
FCT01-P-NN |
85-265VAC/DC |
PNP |
Without RS485 |
No relay |
1 |
US $21.53 |
Order |
| 14 |
FCT01-P-NA1 |
85-265VAC/DC |
PNP |
Without RS485 |
1 relay |
1 |
US $26.02 |
Order |
| 15 |
FCT01-P-NA2 |
85-265VAC/DC |
PNP |
Without RS485 |
2 relays |
1 |
US $29.39 |
Order |
| 16 |
FCT01-P-NA3 |
85-265VAC/DC |
PNP |
Without RS485 |
3 relays |
1 |
US $32.76 |
Order |
| 17 |
FCT01-DN-RN |
12-36VDC |
NPN |
With RS485 |
No relay |
1 |
US $32.76 |
Order |
| 18 |
FCT01-DN-RA1 |
12-36VDC |
NPN |
With RS485 |
1 relay |
1 |
US $36.13 |
Order |
| 19 |
FCT01-DN-RA2 |
12-36VDC |
NPN |
With RS485 |
2 relays |
1 |
US $39.5 |
Order |
| 20 |
FCT01-DN-RA3 |
12-36VDC |
NPN |
With RS485 |
3 relays |
1 |
US $42.87 |
Order |
| 21 |
FCT01-DN-NN |
12-36VDC |
NPN |
Without RS485 |
No relay |
1 |
US $21.53 |
Order |
| 22 |
FCT01-DN-NA1 |
12-36VDC |
NPN |
Without RS485 |
1 relay |
1 |
US $26.02 |
Order |
| 23 |
FCT01-DN-NA2 |
12-36VDC |
NPN |
Without RS485 |
2 relays |
1 |
US $29.39 |
Order |
| 24 |
FCT01-DN-NA3 |
12-36VDC |
NPN |
Without RS485 |
3 relays |
1 |
US $32.76 |
Order |
| 25 |
FCT01-DP-RN |
12-36VDC |
PNP |
With RS485 |
No relay |
1 |
US $32.76 |
Order |
| 26 |
FCT01-DP-RA1 |
12-36VDC |
PNP |
With RS485 |
1 relay |
1 |
US $36.13 |
Order |
| 27 |
FCT01-DP-RA2 |
12-36VDC |
PNP |
With RS485 |
2 relays |
1 |
US $39.5 |
Order |
| 28 |
FCT01-DP-RA3 |
12-36VDC |
PNP |
With RS485 |
3 relays |
1 |
US $42.87 |
Order |
| 29 |
FCT01-DP-NN |
12-36VDC |
PNP |
Without RS485 |
No relay |
1 |
US $21.53 |
Order |
| 30 |
FCT01-DP-NA1 |
12-36VDC |
PNP |
Without RS485 |
1 relay |
1 |
US $26.02 |
Order |
| 31 |
FCT01-DP-NA2 |
12-36VDC |
PNP |
Without RS485 |
2 relays |
1 |
US $29.39 |
Order |
| 32 |
FCT01-DP-NA3 |
12-36VDC |
PNP |
Without RS485 |
3 relays |
1 |
US $32.76 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.45kg
Package size: 14.5 x 8.5 x 10.5 cm
