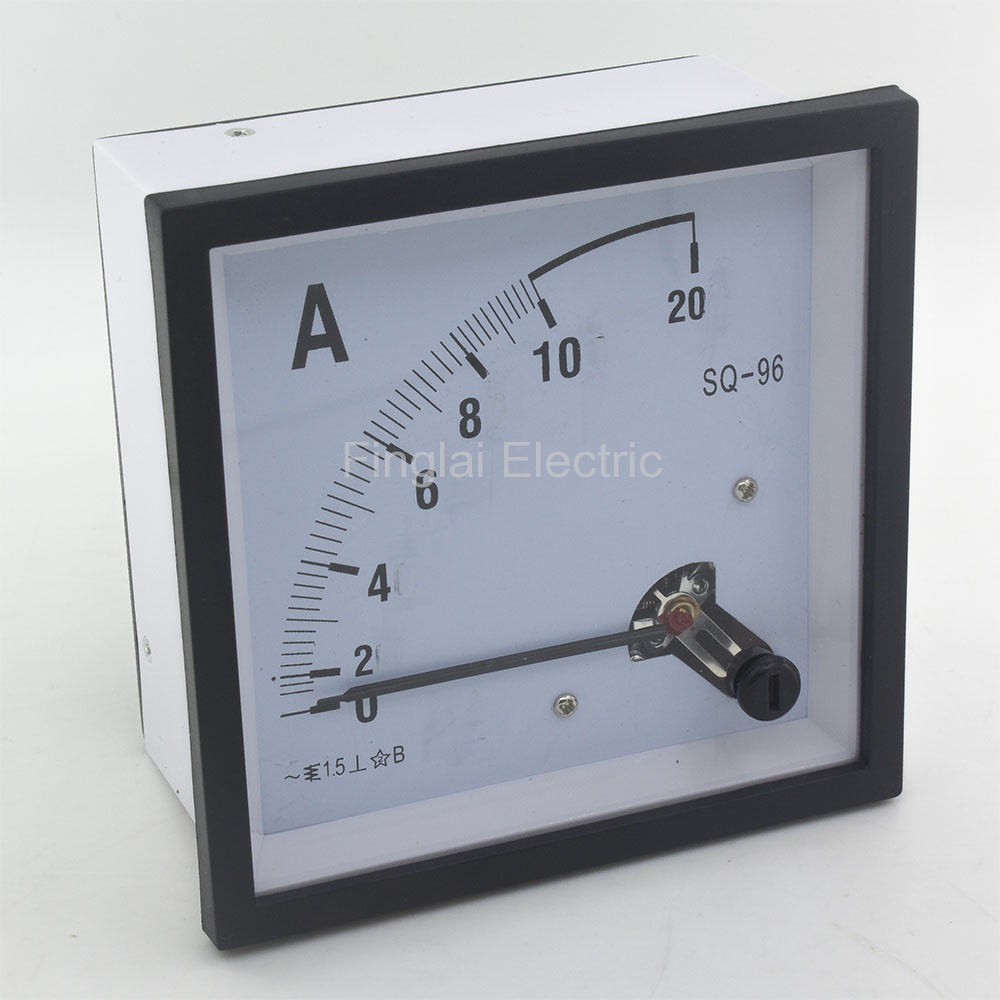

SQ-96-A series 96*96mm pointer AC analog ammeters
Main child models
Mouse over to zoom in
Product description
▇ External dimensions and parameters
Model number | Same model | Type | Range | Online store: |
SQ-96-A | CZ-96-A | Ammeter | Connect directly: 1, 2, 3, 10, 15, 20, 30, 50A; Need current transformer: 10/5, 20/5, 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5A | Visiting... |
SQ-96-V | CZ-96-V | Voltmeter | Connect directly: 50, 100, 150, 250, 300, 450, 500, 600, 750, 1000V Need potential transformer: 12K/100 | US $4.13 - 5.93/ pieceOrder (7) |
▇ SQ-96-A pointer ammeter model number legend
SQ-96-A
Parent Model Number
▇ General
Model number | SQ-96 |
Accuracy level | 1.5 level and 2.5 level |
External dimensions | 96x96 mm |
Perforation dimensions | 91 10x91 10 mm |
Matched current transformer | BH-0.66-30 |
Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
Dielectric strength | 2KV 50Hz for 1min |
Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
Work position | Vertical |
Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
Operating humidity | 85% RH max, non-condensing |
▇ SQ-96-A pointer ammeter child models
No | Model Number | Measured Range | MOQ | Unit Price |
1 | SQ-96-A10 | 10A | 1 | US $4.13 |
2 | SQ-96-A15 | 15A | 1 | US $4.13 |
3 | SQ-96-A20 | 20A | 1 | US $4.13 |
4 | SQ-96-A30 | 30A | 1 | US $4.13 |
5 | SQ-96-A50/5 | 50/5A | 1 | US $4.13 |
6 | SQ-96-A100/5 | 100/5A | 1 | US $4.13 |
7 | SQ-96-A150/5 | 150/5A | 1 | US $4.13 |
8 | SQ-96-A200/5 | 200/5A | 1 | US $4.13 |
9 | SQ-96-A300/5 | 300/5A | 1 | US $4.13 |
10 | SQ-96-A400/5 | 400/5A | 1 | US $4.13 |
11 | SQ-96-A600/5 | 600/5A | 1 | US $4.13 |
