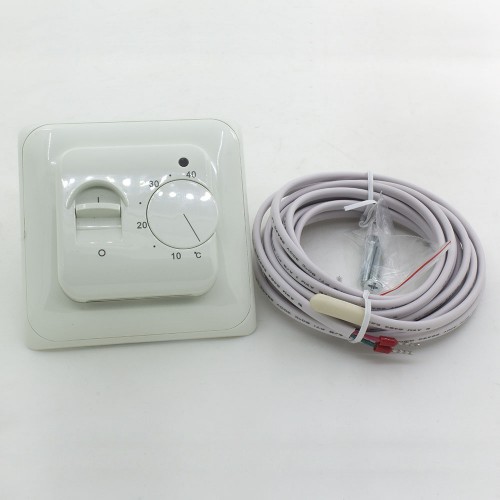

RTC70.26 general temperature controller
Product features
Mouse over to zoom in
RTC70.26 general temperature controller
Price: US $6.65 / piece
Product name: General temperature controller
Deliver to:
Shipping:
US $9.56via
Estimated Delivery Time: 9-15 days
Total price:US $16.21
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and Perforation dimensions
| Model number | External dimensions | Remark | Online store:
|
| RTC70.13 | 80x80x50 mm | 3A, built-in sensor | |
| RTC70.16 | 80x80x50 mm | 16A, built-in sensor | |
| RTC70.26 | 80x80x50 mm | 16A, outside sensor, cable length: 3m | Visiting... |
▇ General
| Model number |
RTC70 series |
| Accuracy |
1 ℃ |
| Supply voltage |
230Vac (220Vac), 110Vac, 24Vac |
| Input type |
NTC |
| Output type |
Mechanical Relay (SPST-NO) |
| Power consumption |
Less than 6VA |
| Control method |
ON/OFF Control |
| Setting method |
Knob |
| Indication method |
LED indication |
| Operating temperature |
-5 to 50 ℃ (23 to 122 ℉) |
| Operating humidity |
85% RH max, non-condensing |
▇ Output type and description
| Electromagnetic relay |
Contact rating: 16A at 250Vac |
▇ Input type and measuring range
| NTC |
Setting: 5-40℃, limit: 25-50℃, energy-saving mode: 5℃ |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 13 x 8 x 9 cm
