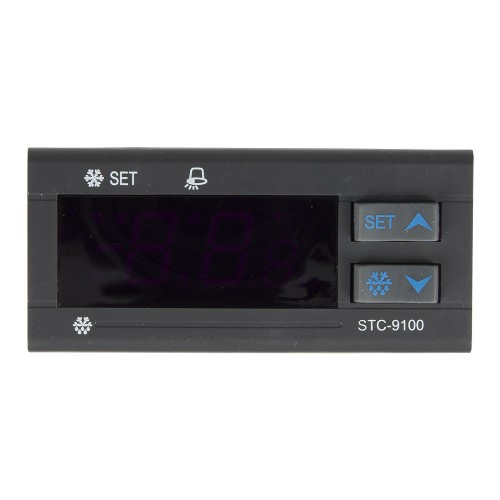

STC-9100 AC 110V cooling defrosting temperature controller
Product features
Mouse over to zoom in
STC-9100 AC 110V cooling defrosting temperature controller
Price: US $13.48 / piece
Model number:
STC-9100-110VACProduct name: Cooling defrosting temperature controller
Deliver to:
Shipping:
US $9.56via
Estimated Delivery Time: 9-15 days
Total price:US $23.04
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Main function | Online store:
|
| STC-9100 | Cooling, defrosting, dual sensors, temperature overrange and sensor fault alarms | Visiting... |
▇ STC-9100 cooling defrosting temperature controller model number legend
▇ General
| Model number |
STC-9100 |
| Measure range |
-50 to 70 ℃ |
| Setting range |
-50 to 50 ℃ |
| Resolution |
0.1 ℃ |
| Accuracy |
±1 ℃ (-40 to 50 ℃), ±2 ℃ (50 to 70 ℃) |
| Supply voltage |
220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc
Current: 110VAC |
| Power consumption |
Less than 3W |
| Output types |
Two mechanical relays |
| Input types |
2pcs 2m cable NTC (included) |
| Panel size |
75x34.5 mm |
| External dimensions |
75x34.5x85 mm |
| Perforation dimensions |
71 10x29 10 mm |
| Control method |
ON/OFF Control |
| Setting method |
Touch switch |
| Indication method |
Three-digit LED + Minus digit + Status indicator light (set; refrigeration; defrost; fan) |
| Front panel IP Rating |
IP65 |
| Operating temperature |
0 to 55 ℃ (32 to 131 ℉) |
| Operating humidity |
20% to 85% RH, non-condensing |
| Storage temperature |
-25 to 75 ℃ (-13 to 167 ℉) |
| Alias name |
STC-9100 freezer temperature controller, defrost thermostat, freezer thermostat |
▇ Output type and description
| Electromagnetic relay for compressor |
Contact rating: 8A at 220Vac |
| Electromagnetic relay for defrosting |
Contact rating: 8A at 220Vac |
▇ STC-9100 cooling defrosting temperature controller child models
| No |
Model Number |
Supply Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
STC-9100-220VAC |
220VAC |
1 |
US $13.48 |
Order |
| 2 |
STC-9100-110VAC |
110VAC |
1 |
US $13.48 |
Visiting... |
| 3 |
STC-9100-24V |
24VAC/DC |
1 |
US $13.48 |
Order |
| 4 |
STC-9100-12V |
12VAC/DC |
1 |
US $13.48 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 13 x 8 x 9 cm
