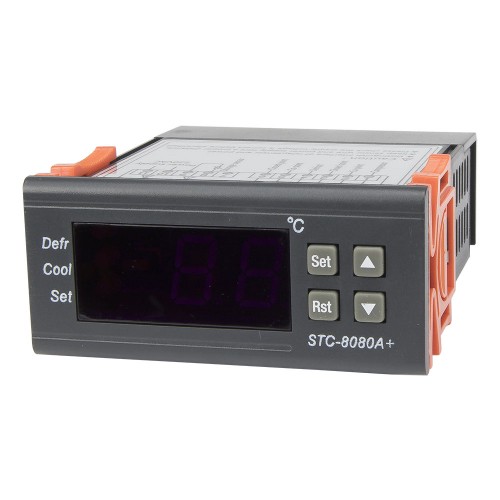

STC-8080A series cooling defrosting temperature controllers
Main child models
Price: US $10.34 / piece
Model number: STC-8080A-220VAC
Product name: Cooling defrosting temperature controller
Product description
▇ Model number and parameters
| Model number | Main function | Online store: |
| STC-8080A | Cooling, defrosting, single sensor, temperature correction | Visiting... |
▇ STC-8080A cooling defrosting temperature controller model number legend
STC-8080A
Parent Model Number
▇ General
| Model number | STC-8080A |
| Measure range | -50 to 99 ℃ |
| Setting range | -40 to 50 ℃ |
| Resolution | 1 ℃ |
| Accuracy | ±1 ℃ (-40 to 50 ℃), ±2℃ (Other) |
| Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc |
| Power consumption | Less than 3W |
| Output types | Two mechanical relay |
| Input types | 1pc 2m cable NTC (included) |
| Panel size | 75x34.5 mm |
| External dimensions | 75x34.5x85 mm |
| Perforation dimensions | 71 10x29 10 mm |
| Control method | ON/OFF Control |
| Setting method | Touch switch |
| Indication method | 8-segment 3-digital display and LED indication |
| Front panel IP Rating | IP64 |
| Operating temperature | 0 to 55 ℃ |
| Operating humidity | 20% to 85% RH, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Alias name | freezer temperature controller, defrost thermostat, freezer thermostat |
▇ Output type and description
| Electromagnetic relay for compressor | 10A@250VAC |
| Electromagnetic relay for defrosting | 10A@250VAC |
▇ STC-8080A cooling defrosting temperature controller child models
| No | Model Number | Supply Voltage | MOQ | Unit Price |
| 1 | STC-8080A-220VAC | 220VAC | 1 | US $10.34 |
| 2 | STC-8080A-110VAC | 110VAC | 1 | US $10.34 |
| 3 | STC-8080A-D | 12/24VAC/DC | 1 | US $10.34 |
