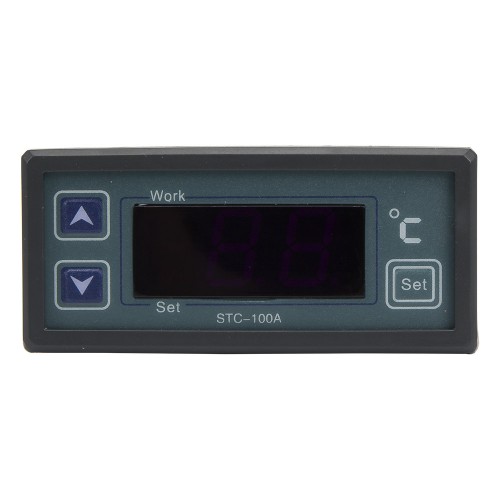

STC-100A AC 110V cooling heating temperature controller
Product features
Mouse over to zoom in
STC-100A AC 110V cooling heating temperature controller
Price: US $7.9 / piece
Model number:
STC-100A-110VAC
Product name: Cooling heating temperature controller
Deliver to:
Shipping:
US $31.2via
Estimated Delivery Time: 9-15 days
Total price:US $70.7
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Main function | Online store:
|
STC-100A | Cooling, heating or alarm (optoinal); single sensor, temperature correction | Visiting... |
▇ STC-100A cooling heating temperature controller model number legend
▇ General
Model number |
STC-100A |
Measure range |
-40 to 70 ℃ |
Setting range |
-40 to 70 ℃ |
Resolution |
1 ℃ |
Accuracy |
±1 ℃ |
Supply voltage |
220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc Current: 110VAC |
Power consumption |
Less than 3W |
Output types |
One Mechanical Relay |
Input types |
1pc 2m cable NTC (included) |
Panel size |
77x34.5 mm |
External dimensions |
77x34.5x65 mm |
Perforation dimensions |
71 10x29 10 mm |
Control method |
ON/OFF Control |
Setting method |
Touch switch |
Indication method |
7-segment 3-digital display and LED indication |
Front panel IP Rating |
IP65 |
Operating temperature |
0 to 55 ℃ (32 to 131 ℉) |
Operating humidity |
20% to 85% RH, non-condensing |
Storage temperature |
-25 to 75 ℃ (-13 to 167 ℉) |
Alias name |
STC-100A freezer temperature controller, defrost thermostat, freezer thermostat |
▇ Output type and description
Electromagnetic relay |
Contact rating: 10A at 220Vac, can be set for cooling, heating or alarm |
▇ STC-100A cooling heating temperature controller child models
No |
Model Number |
Supply Voltage |
MOQ |
Unit Price |
Related Product |
1 |
STC-100A-220VAC |
220VAC |
5 |
US $7.9 |
Order |
2 |
STC-100A-110VAC |
110VAC |
5 |
US $7.9 |
Visiting... |
3 |
STC-100A-D |
12/24VAC/DC |
5 |
US $7.9 |
Order |
Packaging Details
Product quantity: 5pcs
Package weight: 1.5kg
Package size: 21 x 11 x 14 cm
