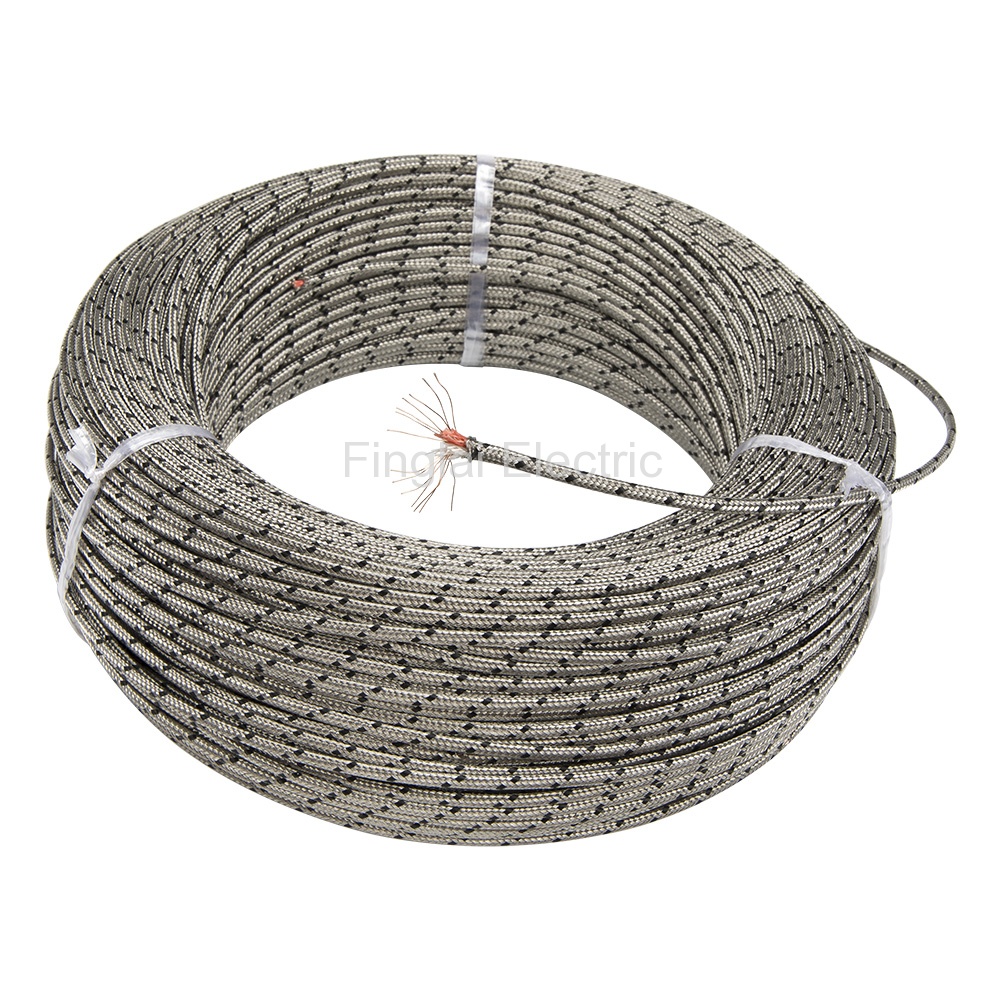

FTARE01 100m/1 roll S R type thermocouple extension wire compensation wire cable (not platinum-rhodium material)
Product features
Mouse over to zoom in
FTARE01 100m/1 roll S R type thermocouple extension wire compensation wire cable (not platinum-rhodium material)
Price: US $158.2 / piece
Model number: FTARE01-SR-C2S7D0.2H100
Product name: Compensation wire
Conductors quantity:
2Single conductor cores quantity:
7Core diameter:
0.2Conductor insulating material:
High Temperature resistance fiberglassDeliver to:
Shipping:
US $62.4via
Estimated Delivery Time: 9-17 days
Total price:US $220.6
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Core material | Online store: |
| FTARE01-SR | S/R | -50-700℃ | Copper / copper-nickel alloy | Visiting... |
| FTARE01-K | K | -50-700℃ | Nickel chromium alloy / nickel silicon alloy | US $1.66 - 61.18/ pieceOrder (2) |
| FTARE01-E | E | -50-700℃ | Nickel chromium alloy / copper nickel alloy | US $61.18/ pieceOrder (1) |
| FTARE01-J | J | -50-700℃ | Iron / copper nickel alloy | US $77.35/ pieceOrder (1) |
▇ FTARE01-SR compensation wire model number legend
FTARE01-SR
Parent Model Number
▇ General
| Model number | FTARE01 |
| Cable material | High Temperature resistance metal screening |
| Cable length | Standard is 1m, customer can specify the cable length Current: 100m (1 roll) |
| Conductors quantity | 2 Current: 2 |
| Conductor insulating material | High Temperature resistance fiberglass Current: High Temperature resistance fiberglass |
| Single conductor cores quantity | 7 Current: 7 |
| Core diameter | S,R,K: 0.2mm; J: 0.25mm Current: 0.2 |
| Purpose | Thermocouple RTD temperature sensor extension wire or compensation wire cable for S R K type thermocouple |
▇ FTARE01-SR compensation wire child models
| No | Model Number | Conductors Quantity | Single Conductor Cores Quantity | Core Diameter | Conductor Insulating Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARE01-SR-C2S7D0.2H1 | 2 | 7 | 0.2 | High Temperature resistance fiberglass | 1m | 1 | US $2.56 | Order |
| 2 | FTARE01-SR-C2S7D0.2H100 | 2 | 7 | 0.2 | High Temperature resistance fiberglass | 100m (1 roll) | 1 | US $158.2 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 2kg
Package size: 29 x 17 x 19 cm
