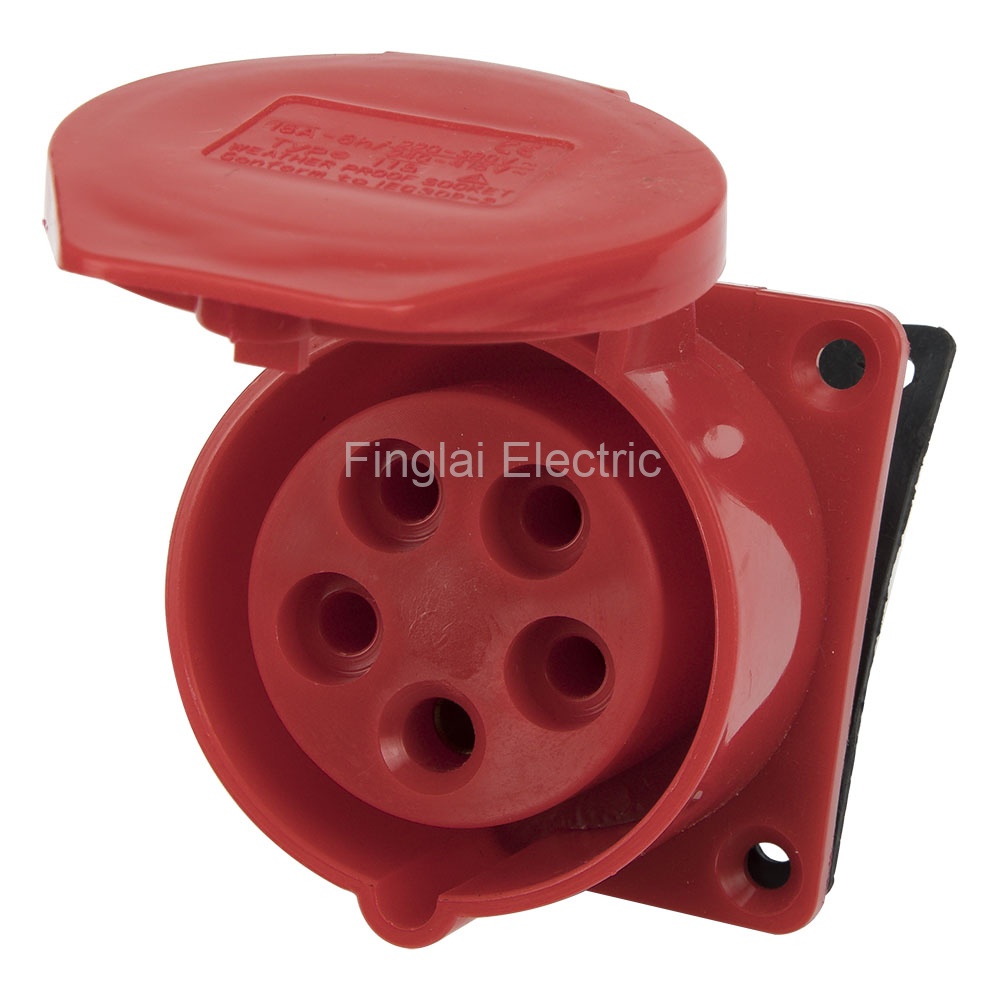

315 16A 3P N E 5 pin 220-380V/240-415V IP44 three phase splashproof industrial flush mounting socket
Product features
Mouse over to zoom in
315 16A 3P N E 5 pin 220-380V/240-415V IP44 three phase splashproof industrial flush mounting socket
Price: US $1.4 / piece
Model number: CM1-315
Product name: Flush mounting socket
Deliver to:
Shipping:
US $8.48via
Estimated Delivery Time: 9-15 days
Total price:US $9.88
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number, current and matched plugs
▇ General
| Earth contact position |
4h |
| Pole |
4 |
| Voltage |
380-415V~3P+E |
| Protection degree |
IP44 |
| Enclosure material |
PA66 |
▇ Model number and dimensions
| Model number | a | b | c | d | e | f | g | h |
| CM1-315 | 76 mm | 86 mm | 70 mm | 70 mm | 56 mm | 56.5 mm | 56.5 mm | 26 mm |
| CM1-325 | 93 mm | 95 mm | 70 mm | 70 mm | 56 mm | 56.5 mm | 56.5 mm | 28 mm |
▇ Model number and packing
| Model number | PCS/Carton |
| CM1-315 | 120 |
| CM1-325 | 60 |
Packaging Details
Product quantity: 1pc
Package weight: 0.24kg
Package size: 13 x 8 x 9 cm
