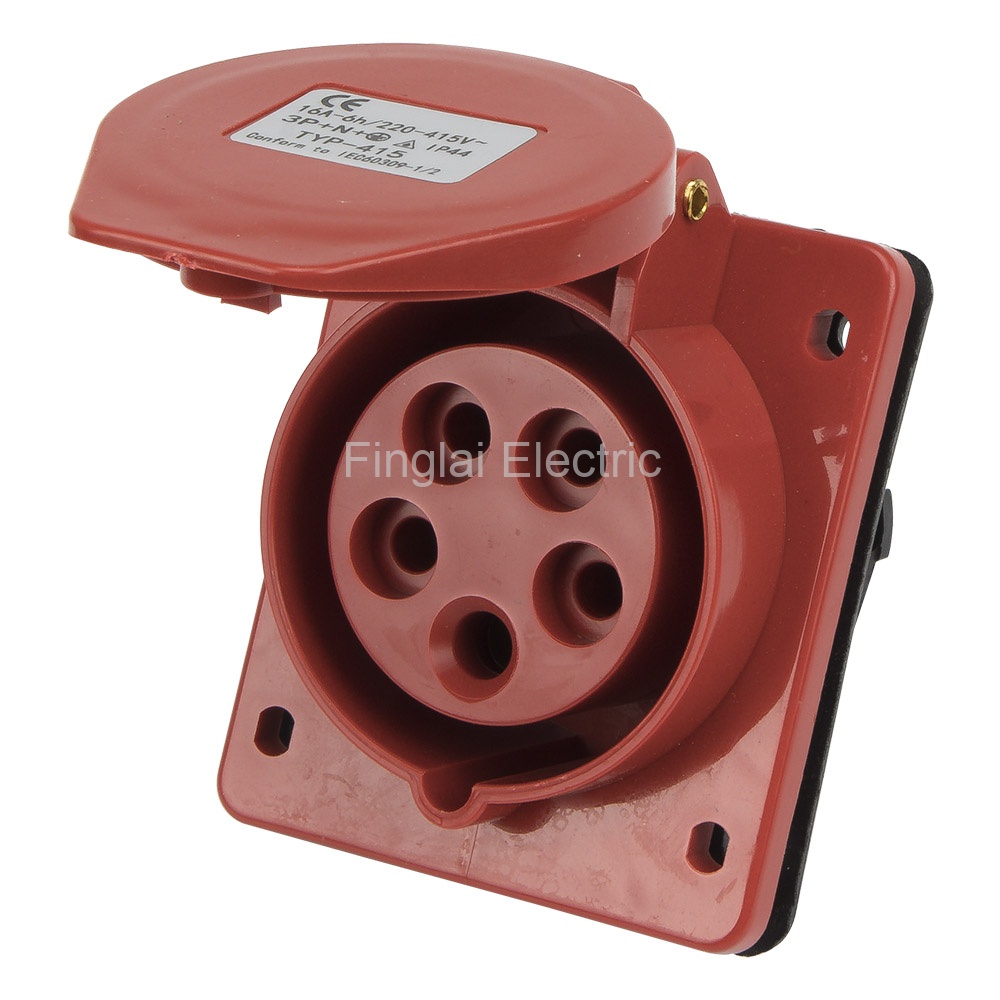

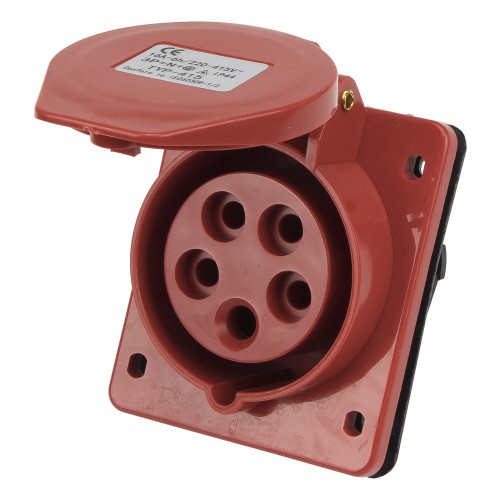

415 16A 3P N E 5 pin 220-380V/240-415V IP44 three phase splashproof industrial flush mounting angled socket
Product features
Mouse over to zoom in
415 16A 3P N E 5 pin 220-380V/240-415V IP44 three phase splashproof industrial flush mounting angled socket
Price: US $2.03 / piece
Model number: CM1-415
Product name: Flush mounting angled socket
Deliver to:
Shipping:
US $11.3via
Estimated Delivery Time: 9-17 days
Total price:US $13.33
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number, current and matched plugs
▇ General
| Earth contact position |
6h |
| Pole |
5 |
| Voltage |
220-380V/240-415V~3P+N+E |
| Protection degree |
IP44 |
| Enclosure material |
PA66 |
▇ Model number and dimensions
| Model number | a | b | c | d | e | f | g | h | i | j |
| CM1-415 | 80 mm | 85 mm | 75 mm | 64 mm | 74 mm | 61 mm | 60 mm | 13 mm | 43 mm | 88 mm |
| CM1-425 | 97 mm | 97 mm | 81.5 mm | 60.5 mm | 85 mm | 70.5 mm | 60.5 mm | 13.5 mm | 53 mm | 96.5 mm |
▇ Model number and packing
| Model number | PCS/Carton |
| CM1-415 | 120 |
| CM1-425 | 60 |
Packaging Details
Product quantity: 1pc
Package weight: 0.24kg
Package size: 13 x 8 x 9 cm
