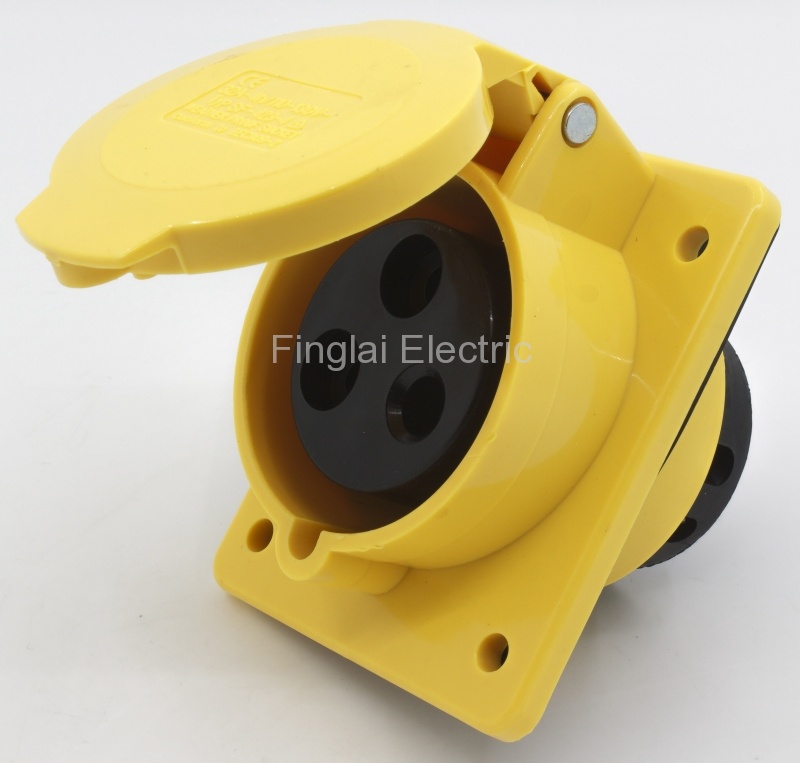

423-4 32A 2P E 3 pin 110-130V IP44 single phase splashproof industrial flush mounting angled socket
Product features
Mouse over to zoom in
423-4 32A 2P E 3 pin 110-130V IP44 single phase splashproof industrial flush mounting angled socket
Price: US $3.3 / piece
Model number: CM1-423-4
Product name: Flush mounting angled socket
Deliver to:
Shipping:
US $11.14via
Estimated Delivery Time: 9-15 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $14.44
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number, current and matched plugs
| Model number | Rated current | Cable cross-section | Plug | Online store: |
| CM1-413-4 | 16A | 1-2.5 mm2 | CM1-013-4 plug CM1-013L-4 cable sleeve plug | US $2.80/ pieceOrder |
| CM1-423-4 | 32A | 2.5-6 mm2 | CM1-023-4 plug CM1-023L-4 cable sleeve plug | Visiting... |
▇ General
| Earth contact position | 4h |
| Pole | 3 |
| Voltage | 110-130V~2P+E |
| Protection degree | IP44 |
| Enclosure material | PA66 |
▇ Model number and dimensions
| Model number | a | b | c | d | e | f | g | h | i | j |
| CM1-413-4 | 76 mm | 70.5 mm | 63 mm | 49 mm | 49 mm | 49 mm | 49 mm | 10.5 mm | 37 mm | 70 mm |
| CM1-423-4 | 86 mm | 99 mm | 80 mm | 62 mm | 72 mm | 70.5 mm | 62 mm | 13 mm | 40 mm | 96 mm |
▇ Model number and packing
| Model number | PCS/Carton |
| CM1-413-4 | 120 |
| CM1-423-4 | 60 |
Packaging Details
Product quantity: 1pc
Package weight: 0.25kg
Package size: 13 x 8 x 9 cm
