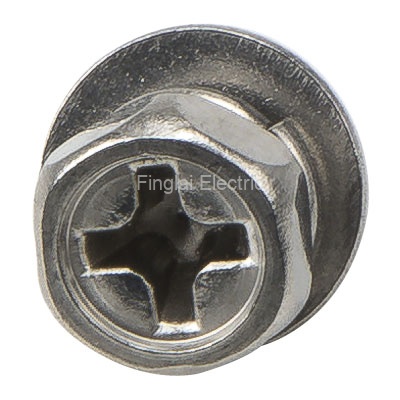

FS10-4 series M4 cross recessed hexagon head three sems screws

Main child models
Mouse over to zoom in
Price: US $0.07 / piece
Model number: FS10-4-10
Product name: Sems screw
Thread length:
8mm10mm12mm16mm20mm
View details
Product description
▇ Model number and parameters (Unit: mm)
Model number FS10-4 FS10-5 FS10-6 FS10-8
Online store:  Visiting... US $0.08 - 0.12/ pieceOrder (6)
Thread size M4 M5 M6 M8
Thread nominal diameter (d) 4 5 6 8
Base thread length (b min) 38 38 38 38
Washer diameter (dc) 9 10 12 16
Washer  thickness (h) 0.8 1 1.6 1.6
▇ FS10-4 sems screw model number legend
FS10-4
Parent Model Number
Thread length
-8: 8mm
-10: 10mm
-12: 12mm
-16: 16mm
-20: 20mm
▇ General
Model number FS10 series
Name Cross recessed hexagon head three sems screw
Material 304 stainless steel
Standard GB9074.13
Dimension e.g. M6*30: Thread nominal diameter is 6mm, length is 30mm (not include the head length)
Alias name FS10 series cross hexagon head combination screw
▇ FS10-4 sems screw child models
No Model Number Thread Length MOQ Unit Price
1 FS10-4-8 8mm 10 US $0.08
2 FS10-4-10 10mm 10 US $0.07
3 FS10-4-12 12mm 10 US $0.08
4 FS10-4-16 16mm 10 US $0.08
5 FS10-4-20 20mm 10 US $0.09
